Sysmac CQM1 User Manual

67
Item CQM1-OD215

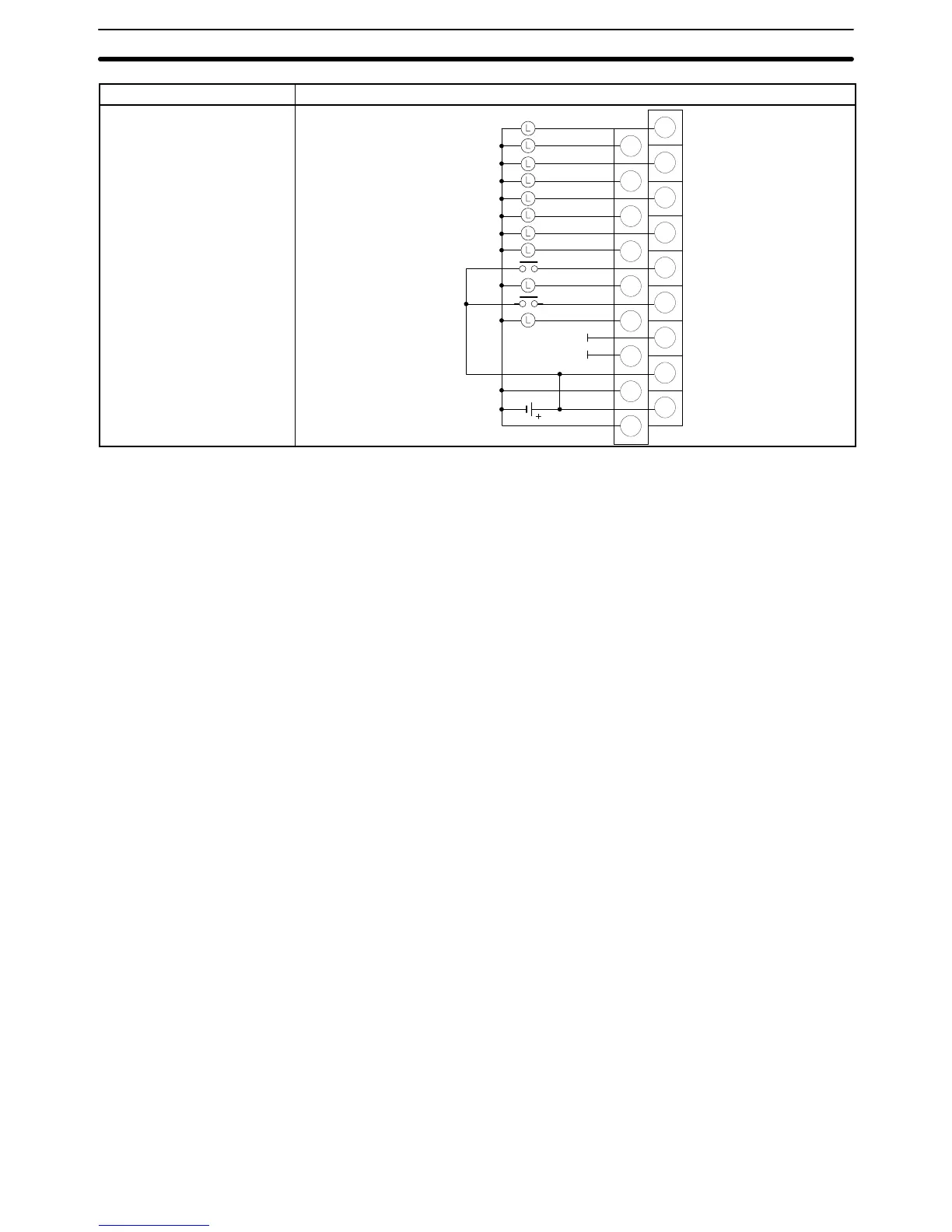

Terminal Connections
B0
0
1
A0
B1
2
3
A1
B2
4
5
A2
B3
6
7
B4
RST0
ALM0
A4
B5
RST1
ALM1
A5
B6
A6
B7
A7
B8
A8
A3
0 V
COM
0 V
COM
NC
NC
–
Note If the output current of any output exceeds the detection current, the outputs will
be turned OFF at the four points (OUT0 to 3 or OUT4 to 7) which include that
output. At the same time, the alarm output (ALM0 or ALM 1) will turn ON and the
alarm indicator will light.
If an alarm output turns ON, first eliminate the problem that caused the detection
current to be exceeded. Then turn from ON to OFF the reset input (RST0 or
RST1) on the side where the alarm output turned ON. The alarm output indicator
will then turn off, the alarm output will return to OFF, and the contact’s output will
be restored.
Unit Specifications
Section 2-6

Sysmac CQM1 Specifications

General

Manufacturer	Omron
Operating Temperature	0 to 55°C
Humidity	10 to 90% RH (non-condensing)
Power Supply	100 to 240 VAC or 24 VDC (depending on model)
Programming Language	Ladder Diagram, Instruction List
Communication Ports	RS-232C
Expansion	Expansion I/O units available
Analog I/O	Available via expansion units
Instruction Set	Basic and advanced instructions
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude
