Sysmac CQM1 User Manual

68
Item CQM1-OD216
Name 32-point PNP Transistor Output Unit
Max. Switching Capacity 0.5 A at 24 V DC
+10%
/
–15%
5 A/Unit
Leakage Current 0.1 mA max.
Residual Voltage 0.8 V max.
ON Delay 0.1 ms max.
OFF Delay 0.3 ms max.
No. of Outputs 32 points (32 points/common, 1 circuit)
Internal Current
Consumption
240 mA max. at 5 V DC max.
Fuse 7 A (one per common), one used
Fuse is not user replaceable.
Service Power Supply 160 mA min. at 24 V DC
+10%
/
–15%
(5 mA  number of ON points)
Weight 210 grams max.
Alarm Output
No. of outputs 1 output (PNP): Turns ON when output short-circuit or overcurrent is
detected.
Output
specifications
Max. switching capacity: 50 mA at 24 V DC
+10%
/
–15%
Leakage current: 0.1 mA max.
Residual voltage: 0.8 V max.
Short-circuit Protection
(see note)
Detection current: 0.7 to 2.5 A (Operation restored automatically after error cleared.)

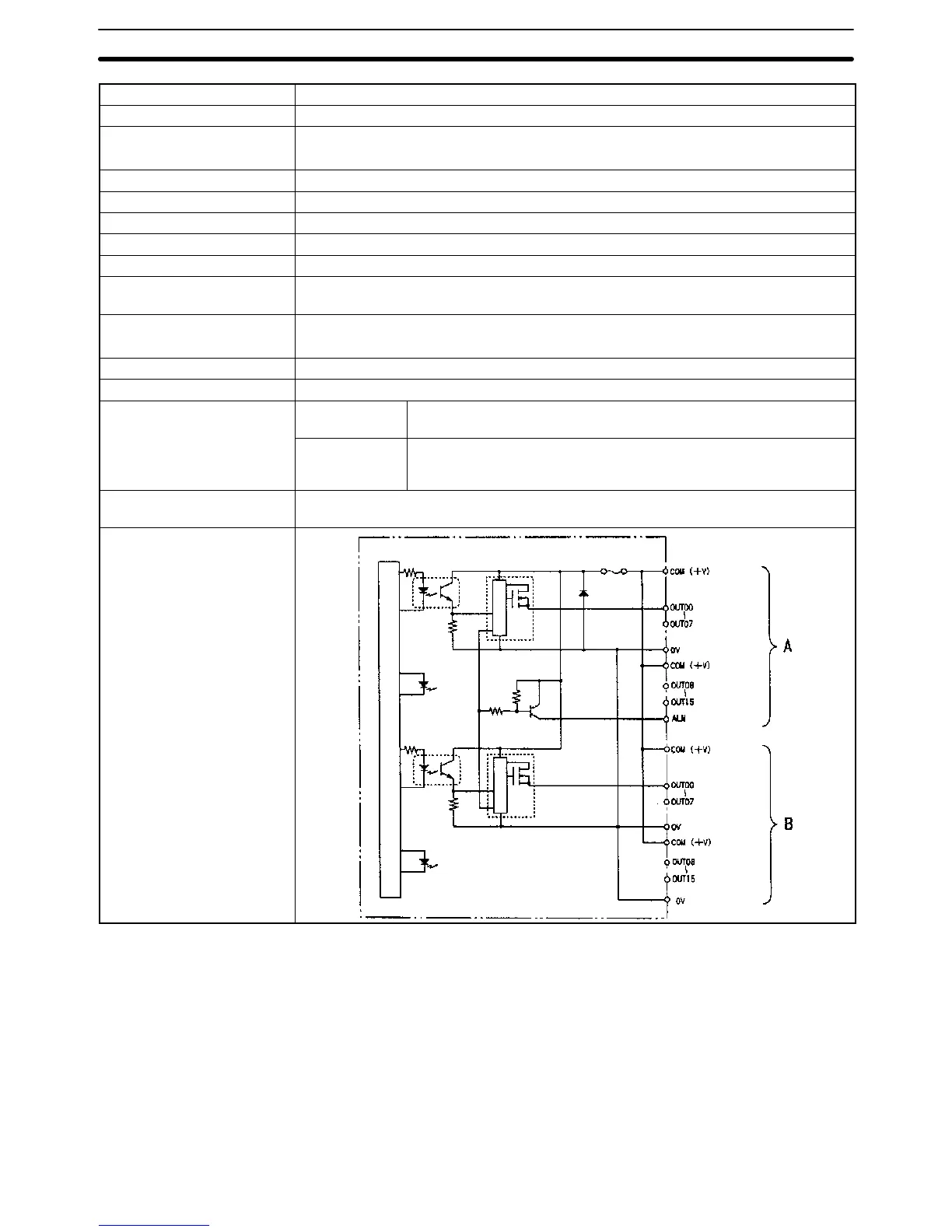

Circuit Configuration
Output
LED
Short-circuit
protection circuit
Output
LED
Short-circuit
protection circuit
Fuse 7-A
(Alarm output)
Internal Circuits
Unit Specifications
Section 2-6

Sysmac CQM1 Specifications

General

Manufacturer	Omron
Operating Temperature	0 to 55°C
Humidity	10 to 90% RH (non-condensing)
Power Supply	100 to 240 VAC or 24 VDC (depending on model)
Programming Language	Ladder Diagram, Instruction List
Communication Ports	RS-232C
Expansion	Expansion I/O units available
Analog I/O	Available via expansion units
Instruction Set	Basic and advanced instructions
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude
