Item CQM1-OD216

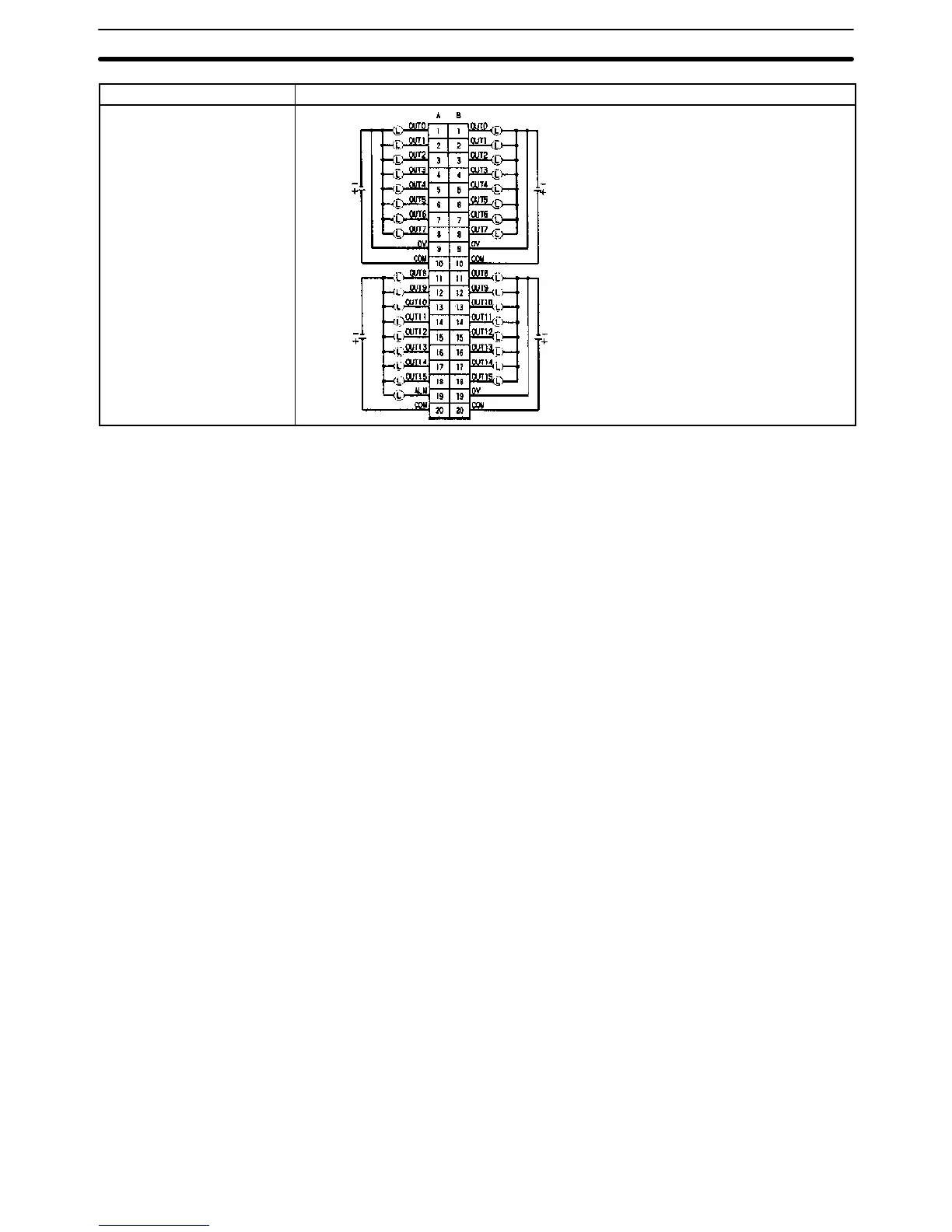

Terminal Connections

The COM terminals and 0-V outputs

are internally connected, but they all

must be wired.

Wd m Wd (m+1)

24 V DC

Note If the output current of any output exceeds the detection current, the output will

be turned OFF. At the same time, the alarm output (ALM) will turn ON (Low).

If an alarm output turns ON, eliminate the problem that caused the detection cur-

rent to be exceeded. The internal temperature of the element will drop and the

alarm will automatically be cleared.

Unit Specifications

Section 2-6
