Sysmac CQM1 User Manual

70

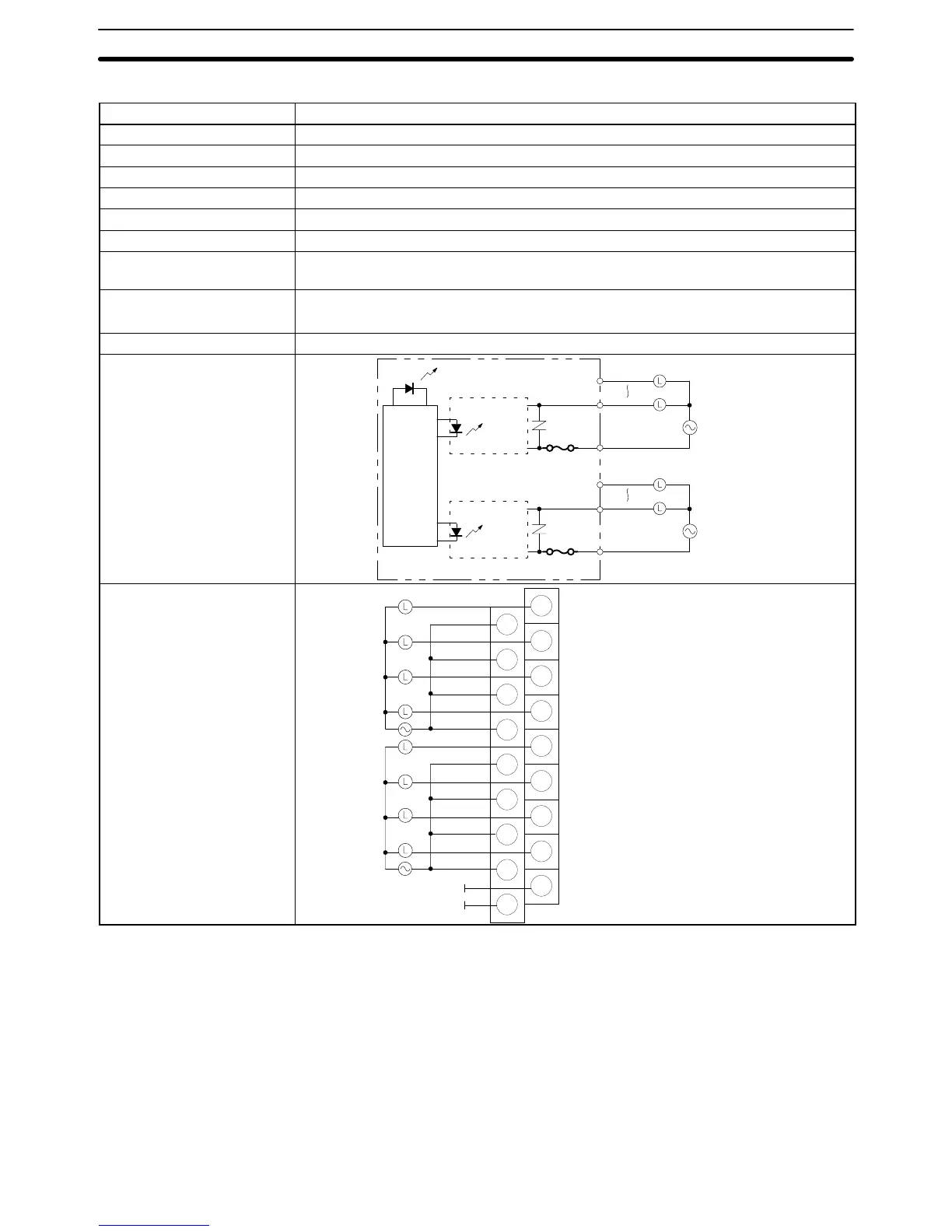

8-point Triac Output Unit
Item CQM1-OA221
Max. Switching Capacity 0.4 A at 100 to 240 VAC
Leakage Current 1 mA max. at 100 VAC and 2 mA max. at 200 VAC
Residual Voltage 1.5 V max. (0.4 A)
ON Delay 6 ms max.
OFF Delay 1/2 cycle + 5 ms max.
No. of Outputs 8 points (4 points/common, 2 circuits)
Internal Current
Consumption
110 mA max. at 5 VDC
Fuse 2 A (one per common), two only used.
Fuse is not user replaceable.
Weight 240 grams max.
Circuit Configuration
OUT00
Output
LED
Internal
Circuits
OUT03
Fuse 2 A
100 to 240 VAC
OUT04
OUT07
Fuse 2 A
100 to 240 VAC
COM0
COM1
Terminal Connections
COM0 and COM1 are not con-
nected internally.
B0
0
COM0
A0
B1
1
COM0
A1
B2
2
A2
B3
3
B4
4
COM1
A4
B5
5
COM1
A5
B6
6
COM1
A6
B7
7
COM1
A7
B8
A8
A3
NC
NC
COM0
COM0
Unit Specifications
Section 2-6

Sysmac CQM1 Specifications

General

Manufacturer	Omron
Operating Temperature	0 to 55°C
Humidity	10 to 90% RH (non-condensing)
Power Supply	100 to 240 VAC or 24 VDC (depending on model)
Programming Language	Ladder Diagram, Instruction List
Communication Ports	RS-232C
Expansion	Expansion I/O units available
Analog I/O	Available via expansion units
Instruction Set	Basic and advanced instructions
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude
