Sysmac CQM1 User Manual

71

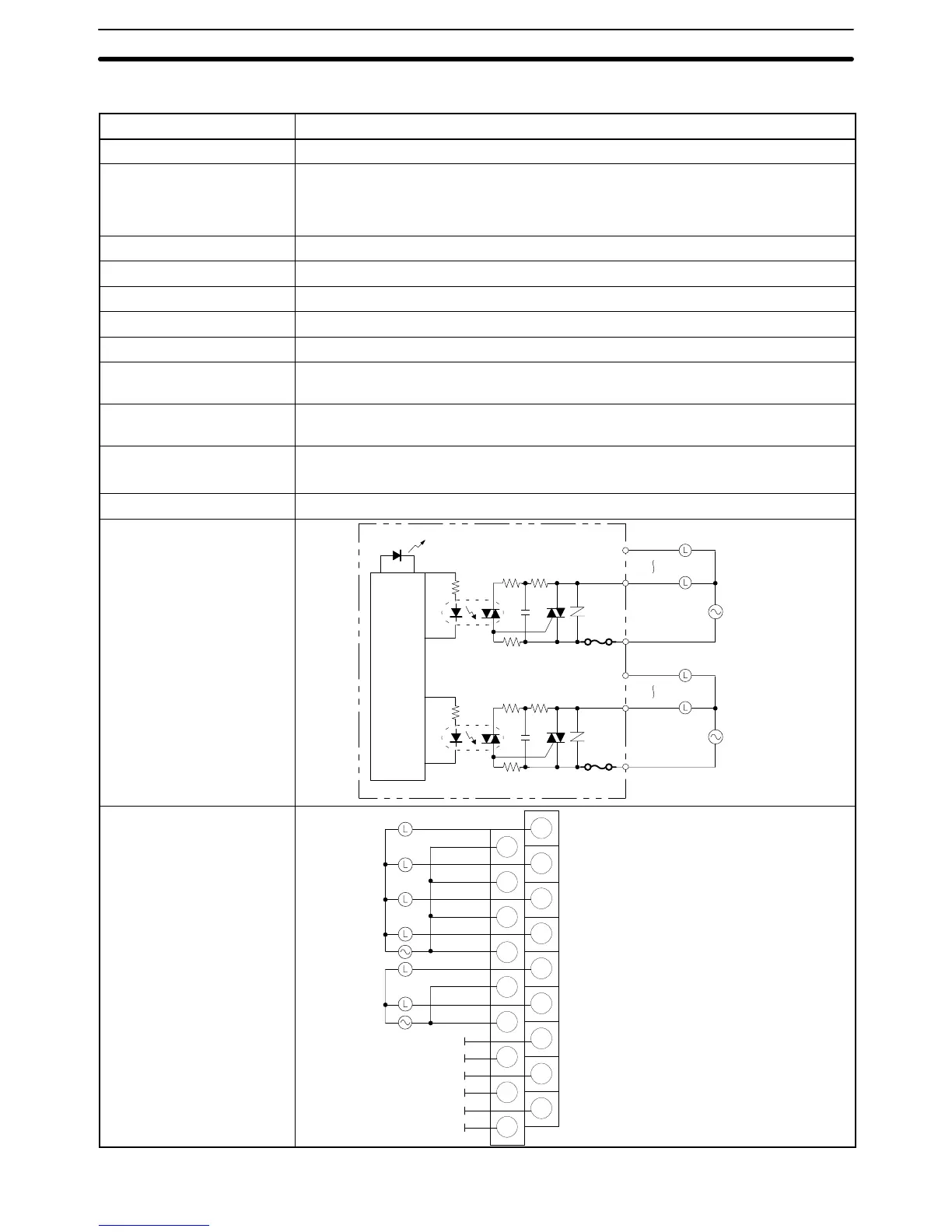

6-point Triac Output Unit
Item CQM1-OA222
Max. Switching Capacity 0.4 A at 100 to 240 VAC (50/60 Hz)
Min. Switching Capacity 100 mA at 10 VAC
50 mA at 24 VAC
10 mA at 100 VAC
10 mA at 240 VAC
Leakage Current 1 mA max. at 100 VAC and 2 mA max. at 200 VAC
Residual Voltage 1.5 V max. (0.4 A)
ON Delay 1 ms max.
OFF Delay Load frequency of 1/2 cycle + 1 ms max.
No. of Outputs 6 points (4 points/common, 1 circuit; 2 points/common, 1 circuit)
Inrush current 6 A at 100 ms
15 A at 10 ms
Internal Current
Consumption
250 mA max. at 5 VDC
Fuse 5 A at 250 V (one per common), two only used.
Fuse is not user replaceable.
Weight 240 grams max.
Circuit Configuration
OUT00
Output LED
Internal
Circuits
OUT03
Fuse
5 A
100 to 240 VAC
COM0
OUT04
OUT05
Fuse
5 A
100 to 240 VAC
COM1
Terminal Connections
COM0 and COM1 are not con-
nected internally.
B0
0
COM0
A0
B1
1
COM0
A1
B2
2
A2
B3
3
B4
4
COM1
A4
B5
5
A5
B6
A6
B7
COM1
A7
B8
A8
A3
NC
NC
COM0
COM0
NC
NC
NC
NC
Unit Specifications
Section 2-6

Sysmac CQM1 Specifications

General

Manufacturer	Omron
Operating Temperature	0 to 55°C
Humidity	10 to 90% RH (non-condensing)
Power Supply	100 to 240 VAC or 24 VDC (depending on model)
Programming Language	Ladder Diagram, Instruction List
Communication Ports	RS-232C
Expansion	Expansion I/O units available
Analog I/O	Available via expansion units
Instruction Set	Basic and advanced instructions
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude
