Tally Dascom 2600 - Horizontal Position Sensor; Head Gap Sensor

Tally Dascom 2600 2610
7

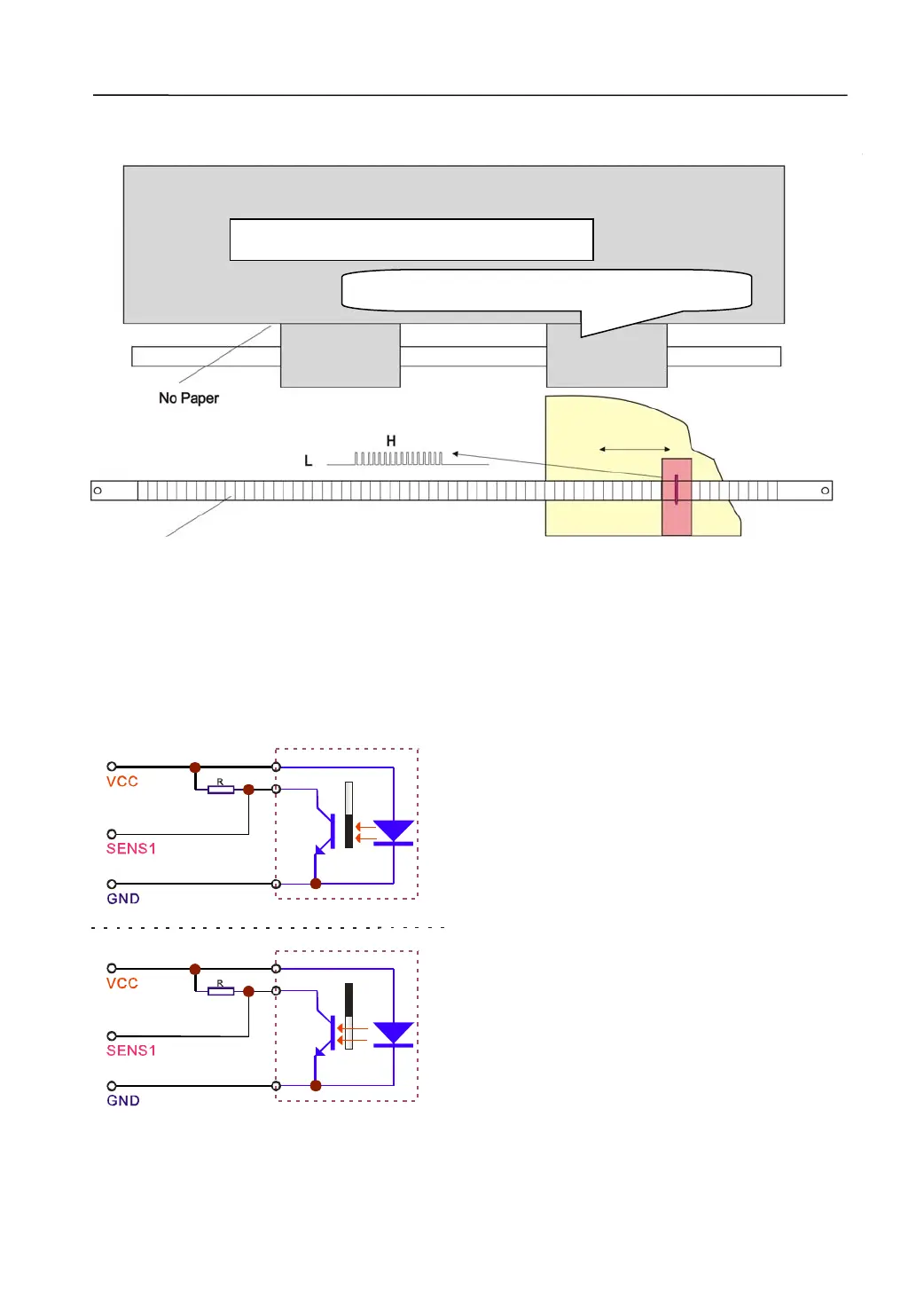

2.1.1 Horizontal Position Sensor
CODE STRIPE 1/180" CARRIAGE/HORIZONTAL POSITION SENSOR ASSY
Functional Description:
Working with the code stripe, the sensor det ermines the current position and the home
position of the carriage.
2.1.2 Head Gap Sensor
LOWER MAIN FRICTION SHAFT ASSY
LOWER SLAVE FRICTION SHAFT ASSY
Functional Description:
It is transmissive type. The emitted light
from the LED is blocked by setting the Gap
Lever above 2-part, which indicates the
installation of thick media.
Emitted light is through when the Gap
Lever is set below 2-part.
The Menu Setting determines if stronger
impact force is applied on printing thick media.
