3.2.10 Disassemble the Gear Carrier Assy
1) Disassemble the Gear Carrier Assy


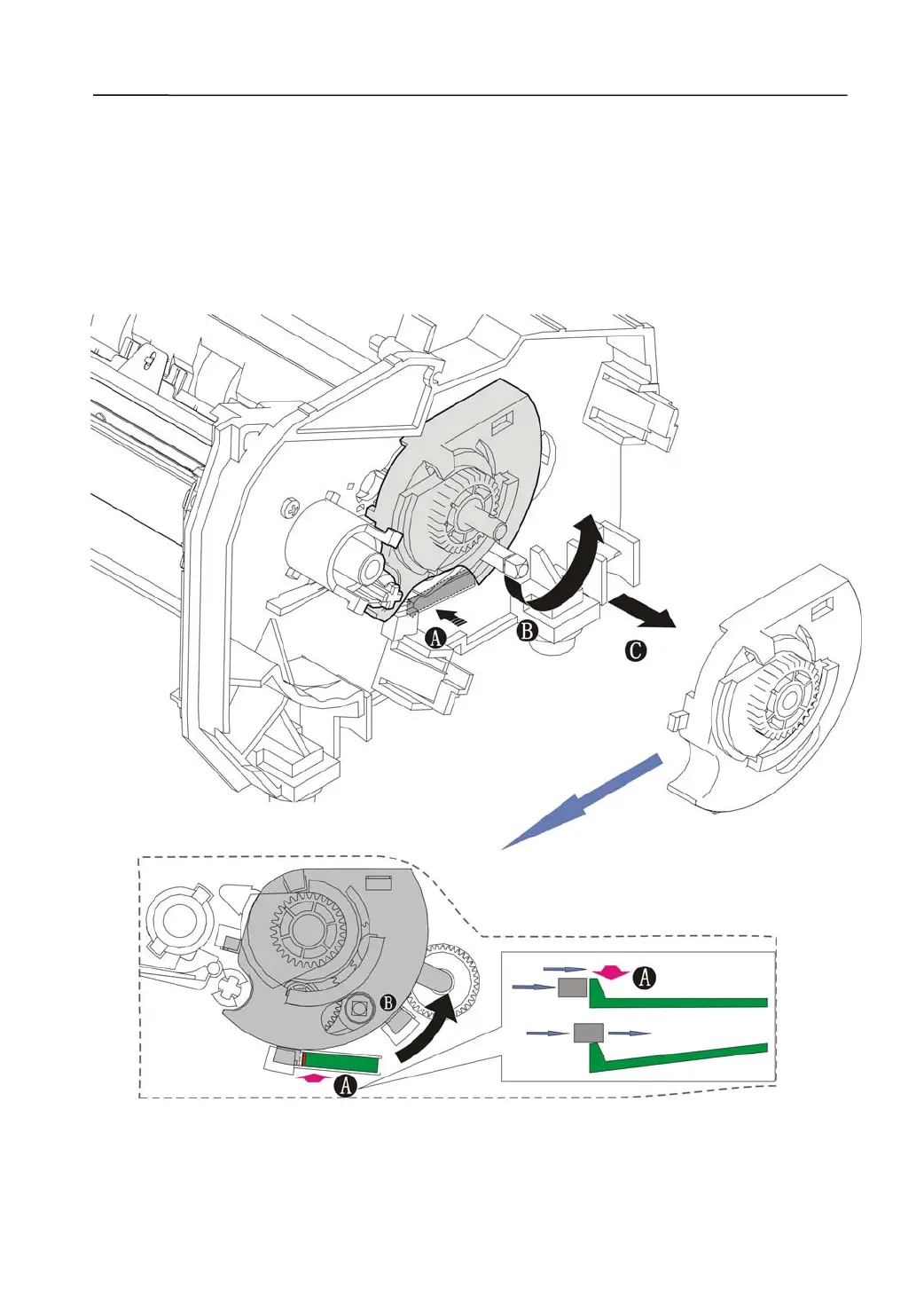

Refer to the illustration. Press the latch on the Side Plate inward to disengage the
Carrier from the latch on the Side Plate. →A

Rotate the Cam Wheel Assembly upward to disengage it from latch slot on the
Right Side Plate. →B

Pull out the Carrier. →C
