Tally Dascom 2600 2610
28

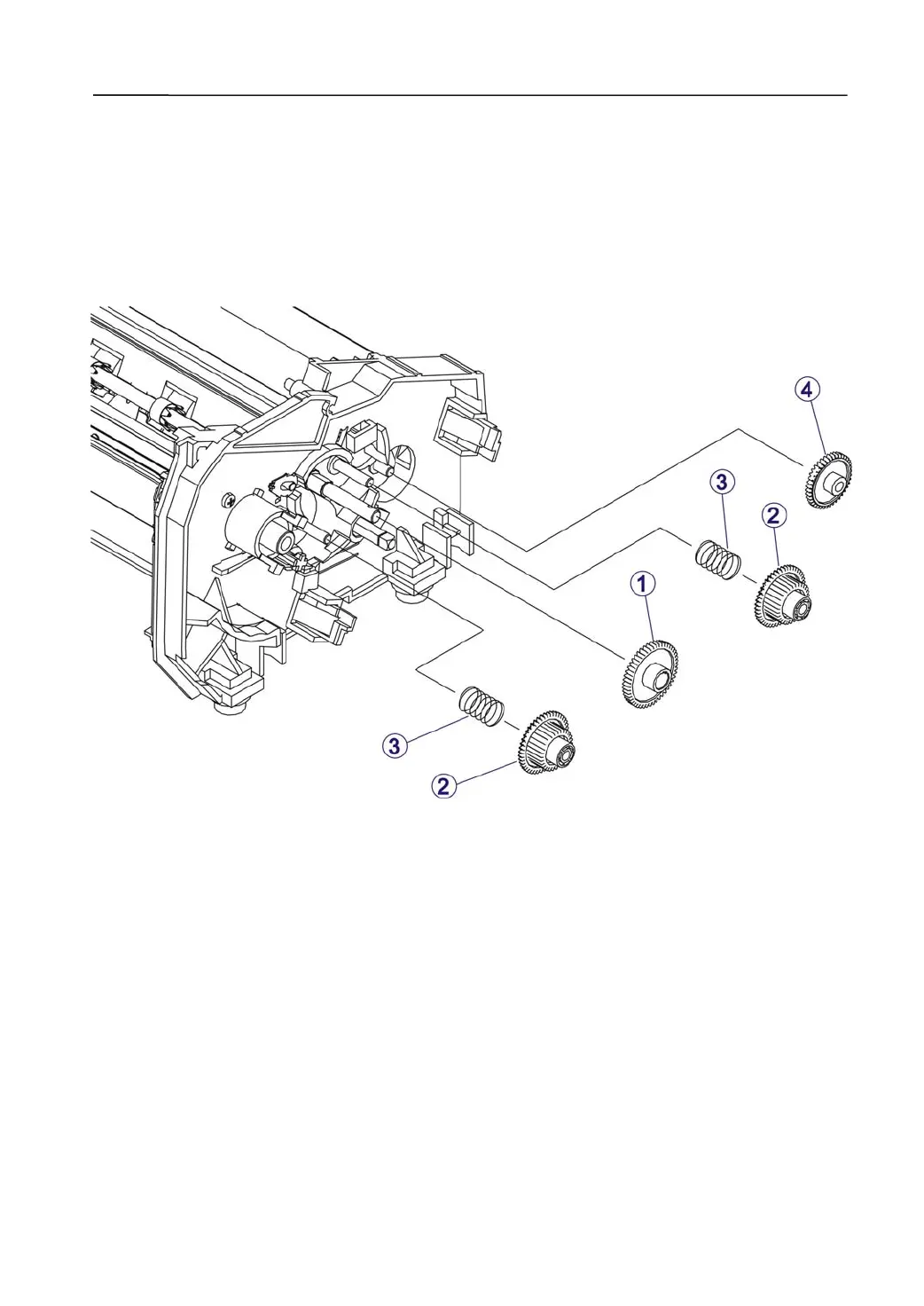

3.2.11 Disassemble the Gear Carrier
1) Disassemble the Gear Carrier
Gear m0.75xt48→①
Gear m0.75xt30/t45, Qty: 2→②
Compression Spring D0.8, Qty: 2→③
Gear m0.75xt40→④
