3.2.19 Disassemble the Lower Main Friction Shaft Assy

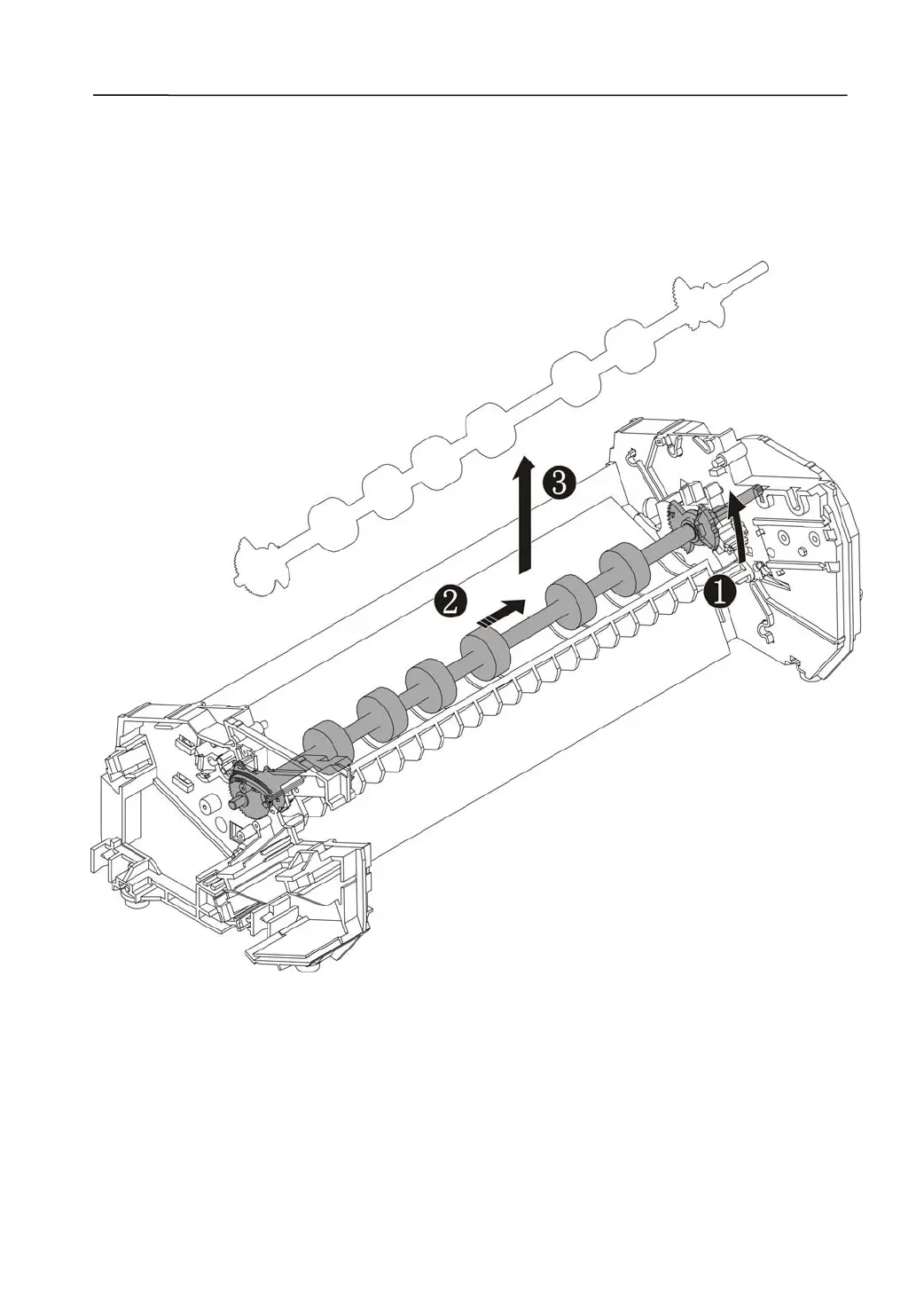

1) Disassemble the Lower Main Friction Shaft Assy

Lift the Assembly out of the latch→①

Slide the Assembly to the right, out of the Left Chassis Side Plate→②

Unload the Assembly→③
