3.2.6 Disassemble the Head Gap Lever

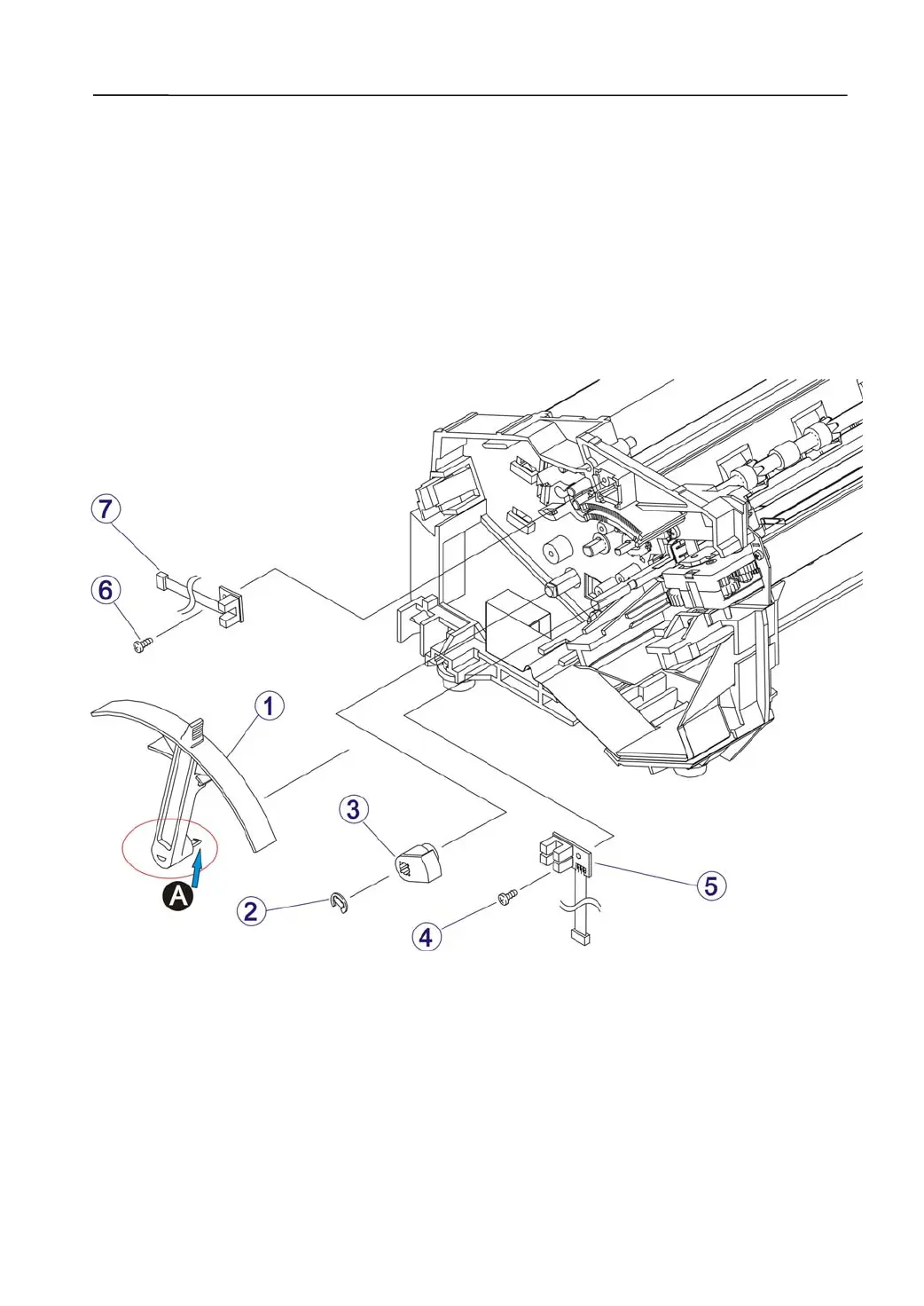

1) Disassemble the Head Gap Lever

Slightly unlock the latch at A.

Pull out the Head Gap Lever→①

Pry out the E-ring→②

Remove Code Wheel of Paper Path Select→③

Unfasten the fixing screw→④

Remove the Paper Path Select Sensor Assy→⑤
 Unfasten the fixing screw→⑥

Remove the Head Gap Sensor Assy→⑦
