3.2 Main Mechanism
3.2.1 Disassemble the Controller and the Power Supply Unit
1) Unload the Power Supply Unit


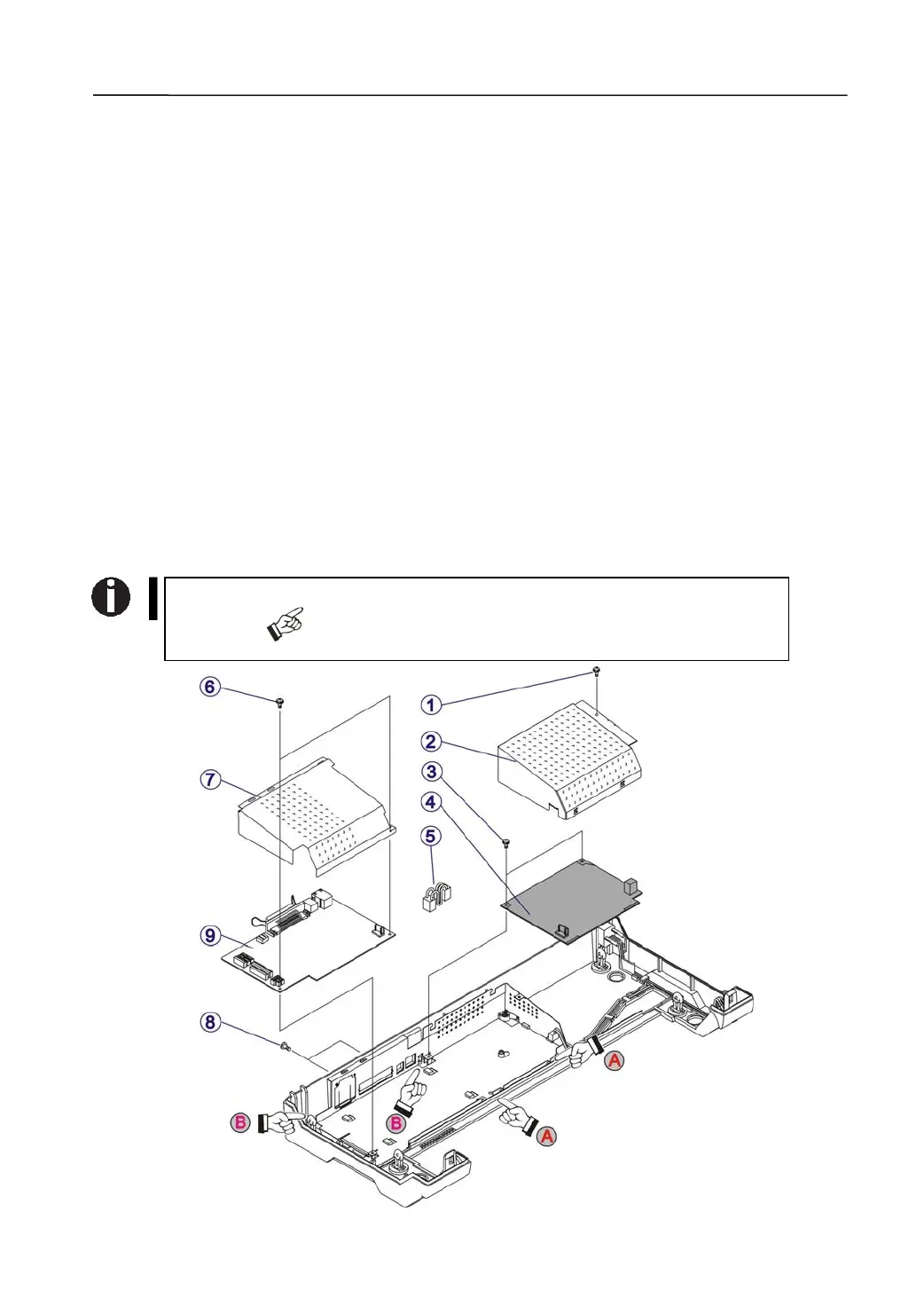

Unfasten the screw ① on the Shield Cover.

Remove the Shield Cover ②.

Unfasten the 2 screws ③ on the PSU.

Pry the 2 bends at A holding the PSU to the Shielding Ground Plate.

Unplug the cable ⑤ connecting the PSU output to the Controller.

Remove the PSU ④.
2) Unload the Controller

Unfasten the 2 screws ⑥ on the Controller.
 Remove the Shield Cover ⑦.

Unfasten the 2 screws ⑧ holding parallel interface connector on the Controller to
the Shield Ground Plate.

Pry the 2 bends at B holding the Controller to the Shielding Ground Plate.

Remove the Controller ⑨.
When restore the Controller and the PSU, make sure to make lock bends
marked by
.
