3.2.17 Disassemble the Shaft Square Paper Path
1) Disassemble the Cover Transverse

Pry the Cover off from the latch →A

Remove the Cover →B

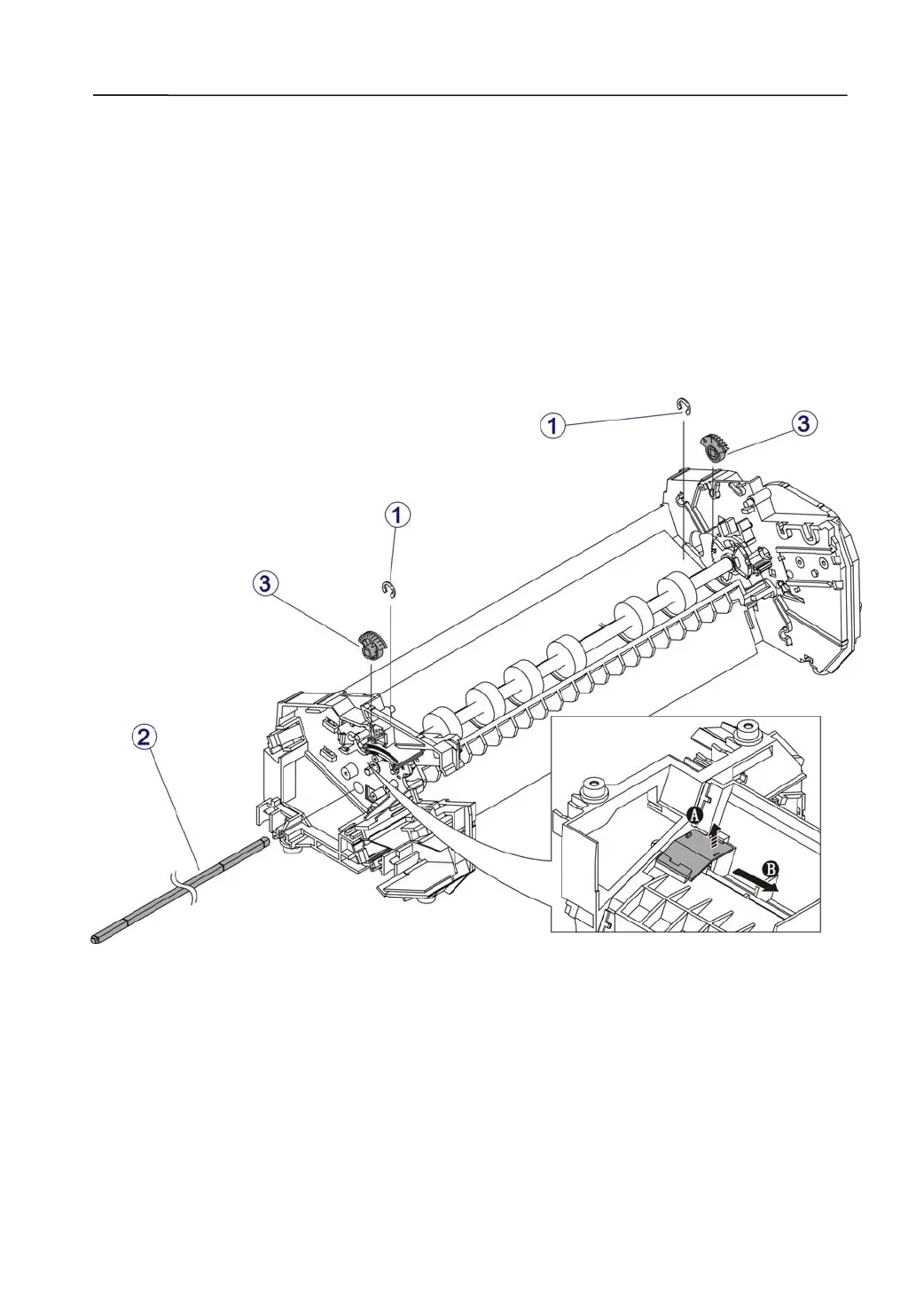

2) Disassemble the Shaft Square Paper Path

Remove two E-rings→①

Slide the Square Shaft out→②

Remove the two Toothed Segments M1.0→③
