Tally Dascom 2600 - Paper End & TOF Sensor

Tally Dascom 2600 2610
8

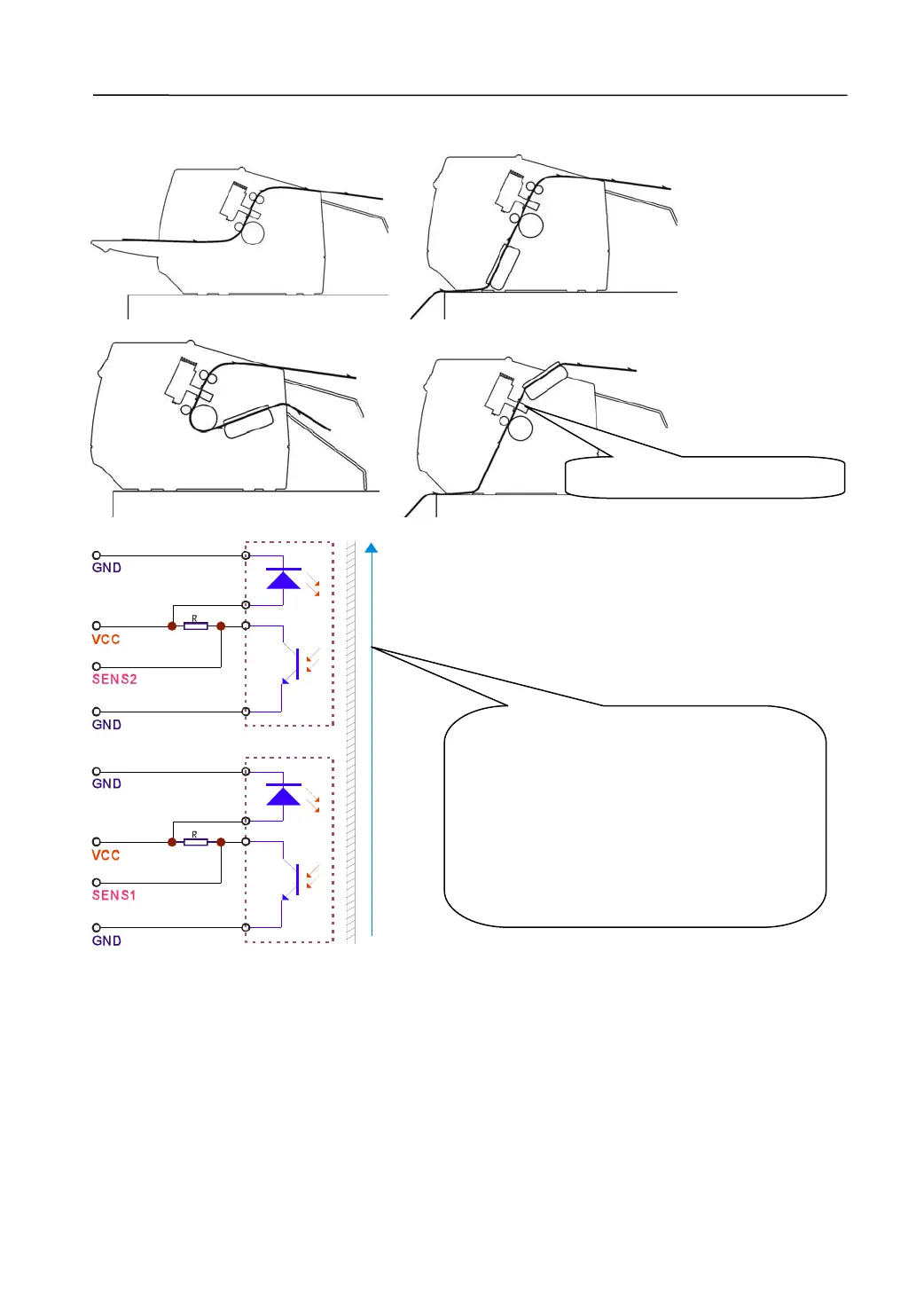

2.1.3 Paper End & TOF Sensor
Single FF-front
FF-rear FF-pull
Functional Description:
The SENS1/SENS2 reflective pair is assembled as one part, with SENS1 at a lower
position---for all 4 paper paths. The relative positions of the sensors determine the top edge
and bottom end of the form when the paper advances in the forward direction in all 4 paper
paths.
Paper End & TOF Sensor
Forward movement of the paper in all 4
paths follows the direction of the blue
arrow.
As the form advances in the forward
direction, SENS1 detects the top edge
of the form (Top of Form) by the
reflection on white paper background.
SENS2 detects the bottom edge of the
form
(
Pa
p
e
r
End
)
.
