3.1 Complete Assembly Parts
3.1.1 Disassemble the Upper Housing
1) Eject the paper. Switch off the power.
2) Disconnect the power cord and all interface cables.

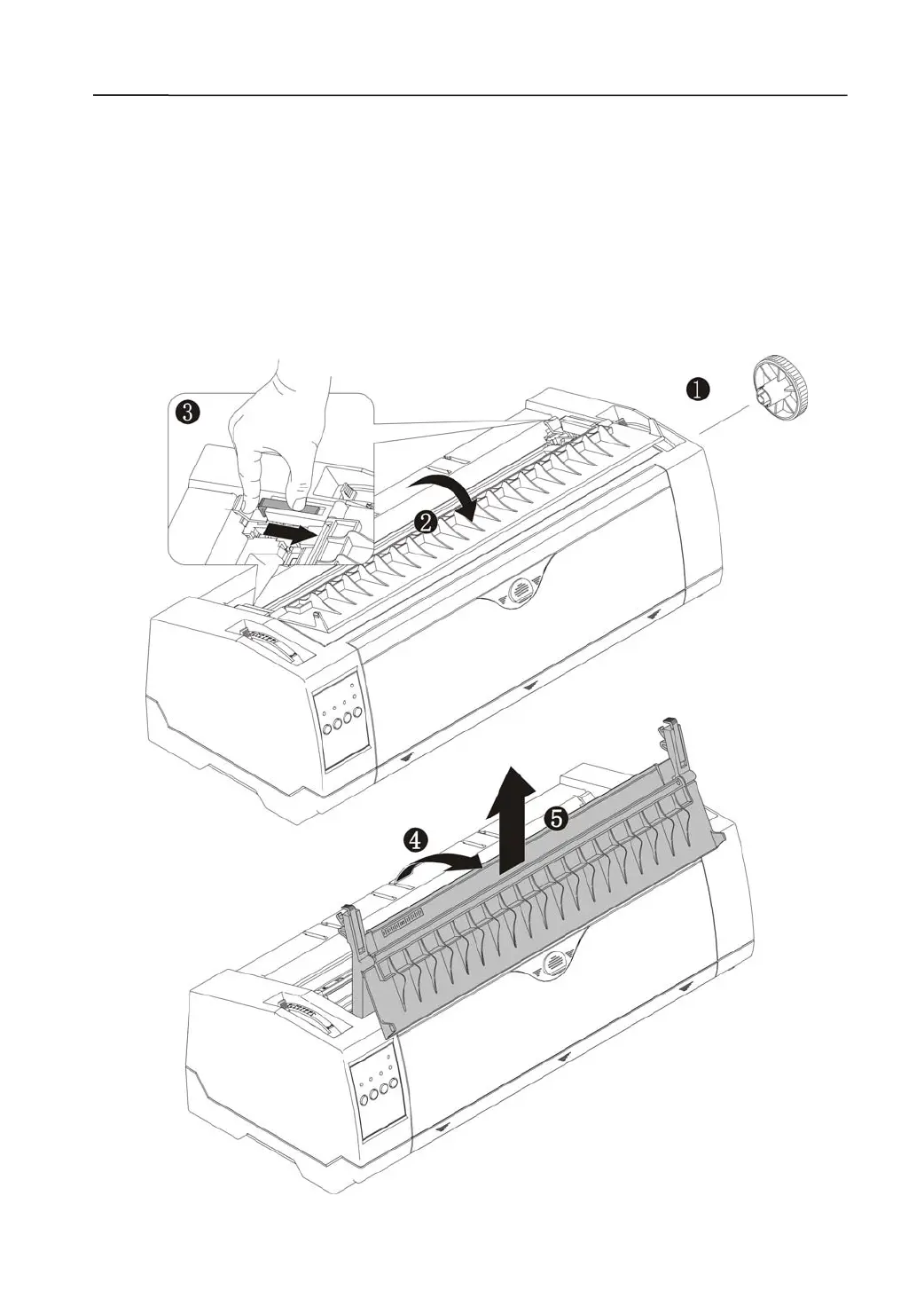

3) Pull out the platen knob. →①
4) Disassemble the Upper Housing parts.

Un-fold the Top Cover 2→②
 Disengage the left and right latches→③

Lift and take out the 2 Top Covers (1 & 2) →④,⑤
