3.2.7 Disassemble the Paper Path Select Lever

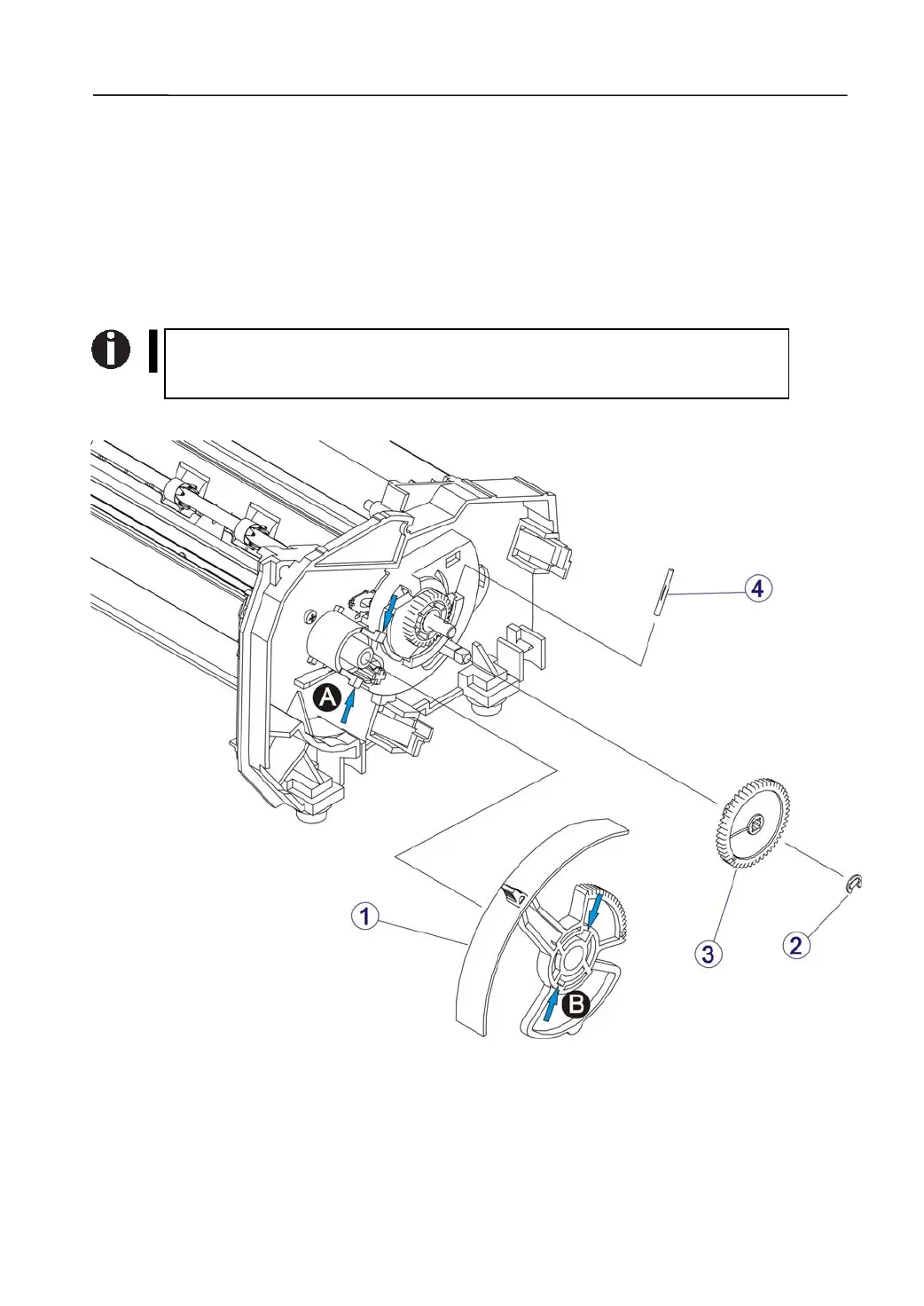

1) Disassemble the Paper Path Select Lever

Position the Lever such that A and B are aligned.

Pull the Lever to the right.→①

Pry out the E-ring.→②

Remove Gear m1xt50.→③

Use special extraction tool to remove the Notch Pin D3.→④
Use proper extraction tool not to damage the Notch Pin. Ensure the
Notch Pin is tightly restored to its slot.
