3.2.15 Disassemble the Switch Paper Guide Assy

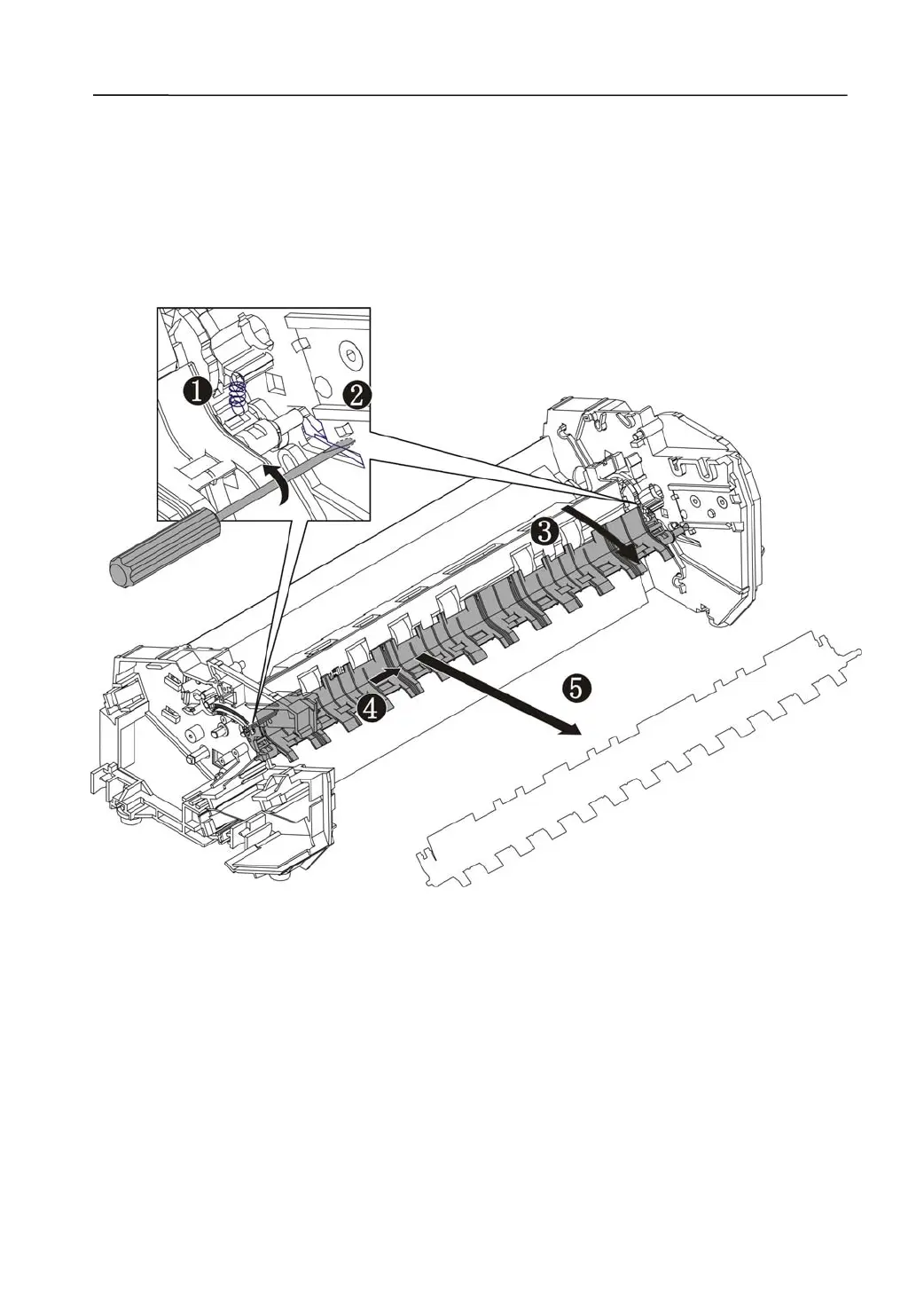

1) Disassemble the Switch Paper Guide Assy

Use a pair of tweezers to lift the springs out of the two ends. →①

Use a flat-bladed screwdriver to disengage the latches, holding the Assembly on
both Chassis Side Plates. →②

Pull out the Clamp to the right.→③
 Slide the Assembly to the right →④, then pull the Assembly out to the front. →⑤
