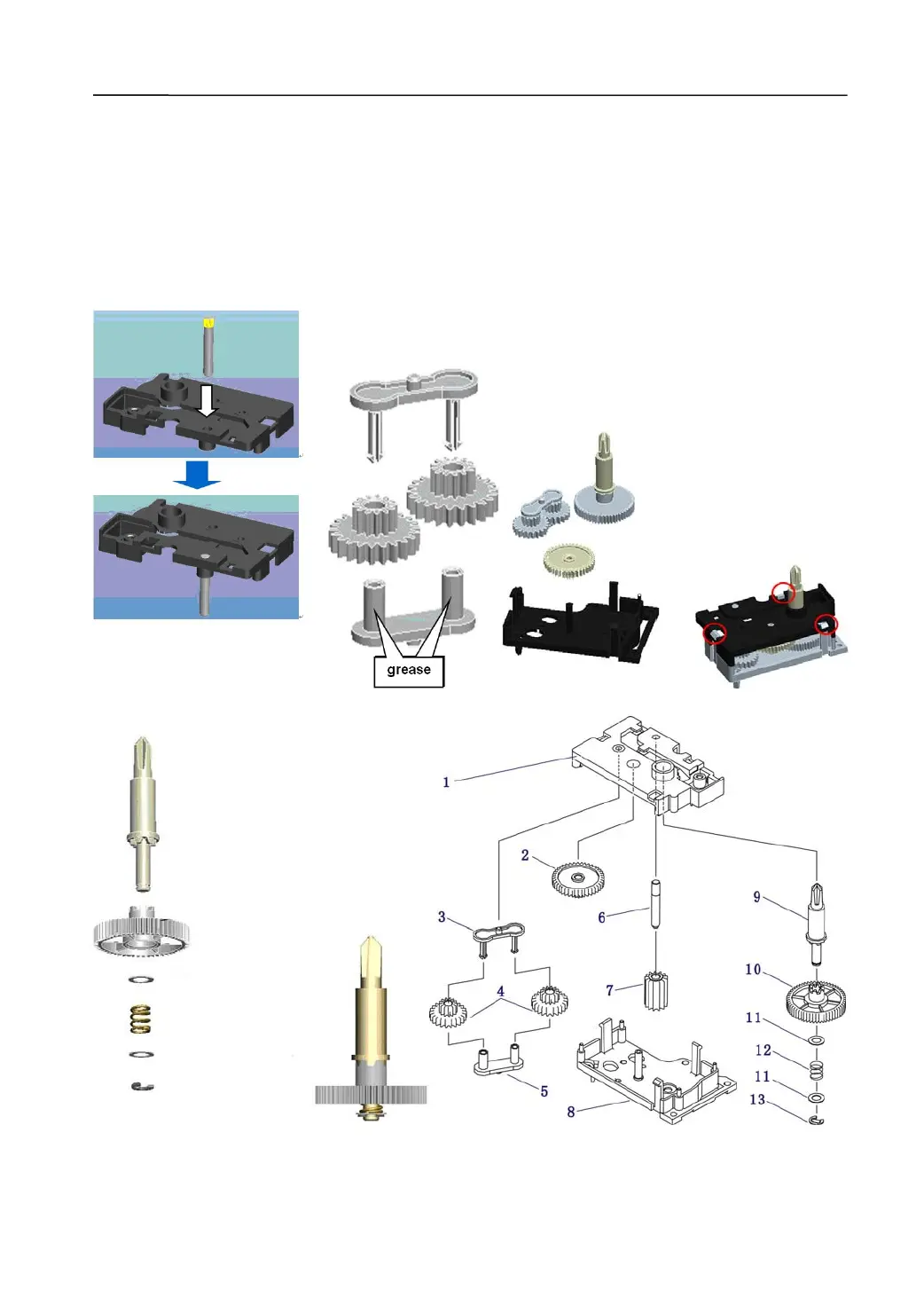

3.2.28 Assemble the Ribbon Drive

Vertically press the Shaft D4.0 L27 into the Ribbon Drive Cover till the tip of the
Shaft levels with the Cover surface.
 Put proper amount of grease on the Shafts of the Seesaw Bottom.

Put Gear M0.75/0.6 T22/13 on each Shafts of the Seesaw Bottom.

Couple the Seesaw Bottom with the Seesaw Top.

Fix the Clutch Shaft Assy.
