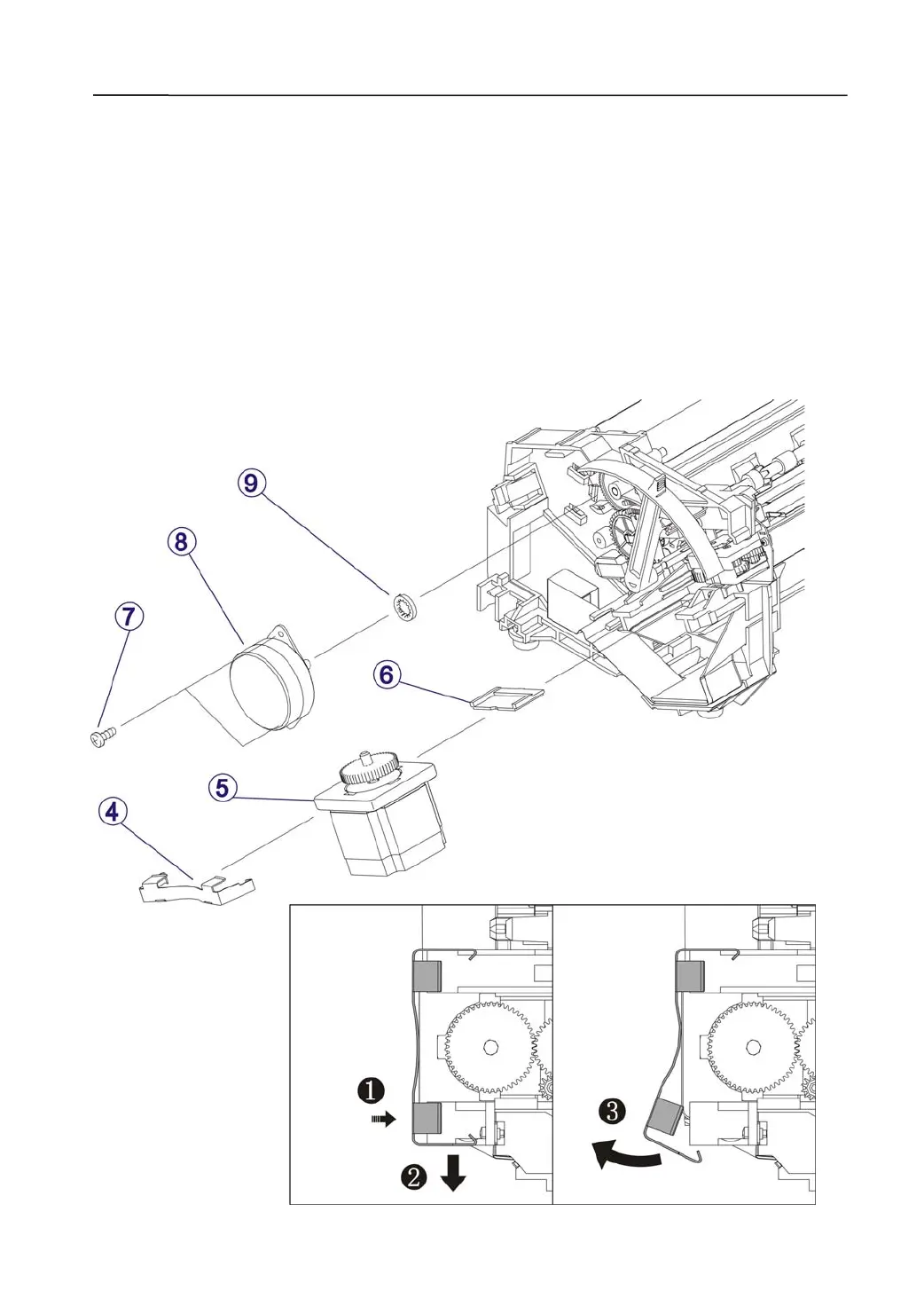

3.2.4 Disassemble the Carriage Motor and t he Paper Feed Motor
1) Disassemble the CR Motor

Press the CR Motor Clamp to the right.→①

Pry out 1 of the hook on the CR Motor Clamp.→②

Remove the CR Motor Clamp.→③,④

Remove the CR Motor Assembly.→⑤

Remove the Distance Holder.→⑥
2) Disassemble the PF Motor

Unfasten the 2 fixing screws.→⑦

Remove the PF Motor Assembly.→⑧

Remove the Guide Ring.→⑨
