Tally Dascom 2600 - Disassemble the Ribbon Gear Assy

Tally Dascom 2600 2610
43

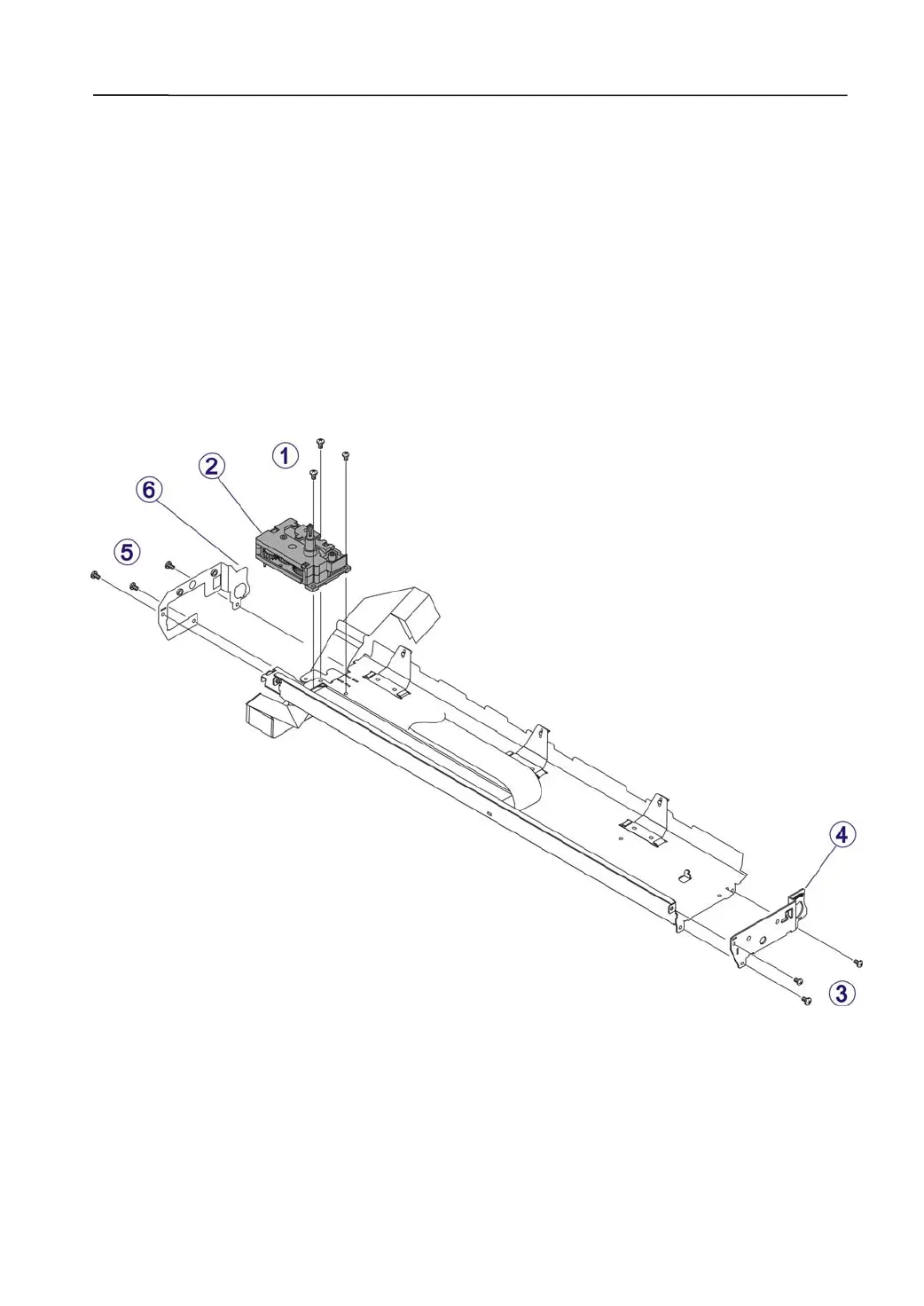

3.2.26 Disassemble the Ribbon Gear Assy
1) Disassemble the Ribbon Gear Assy

Unfasten the 3 fixing screws.→①

Dismount the Ribbon Gear Assy. →②
2) Disassemble the Side Plate Left/Right

Unfasten the 3 fixing screws on the Side Plate Right.→③

Take out the Side Plate Right. →④

Unfasten the 3 fixing screws on the Side Plate Left.→⑤

Take out the Side Plate Left.→⑥
