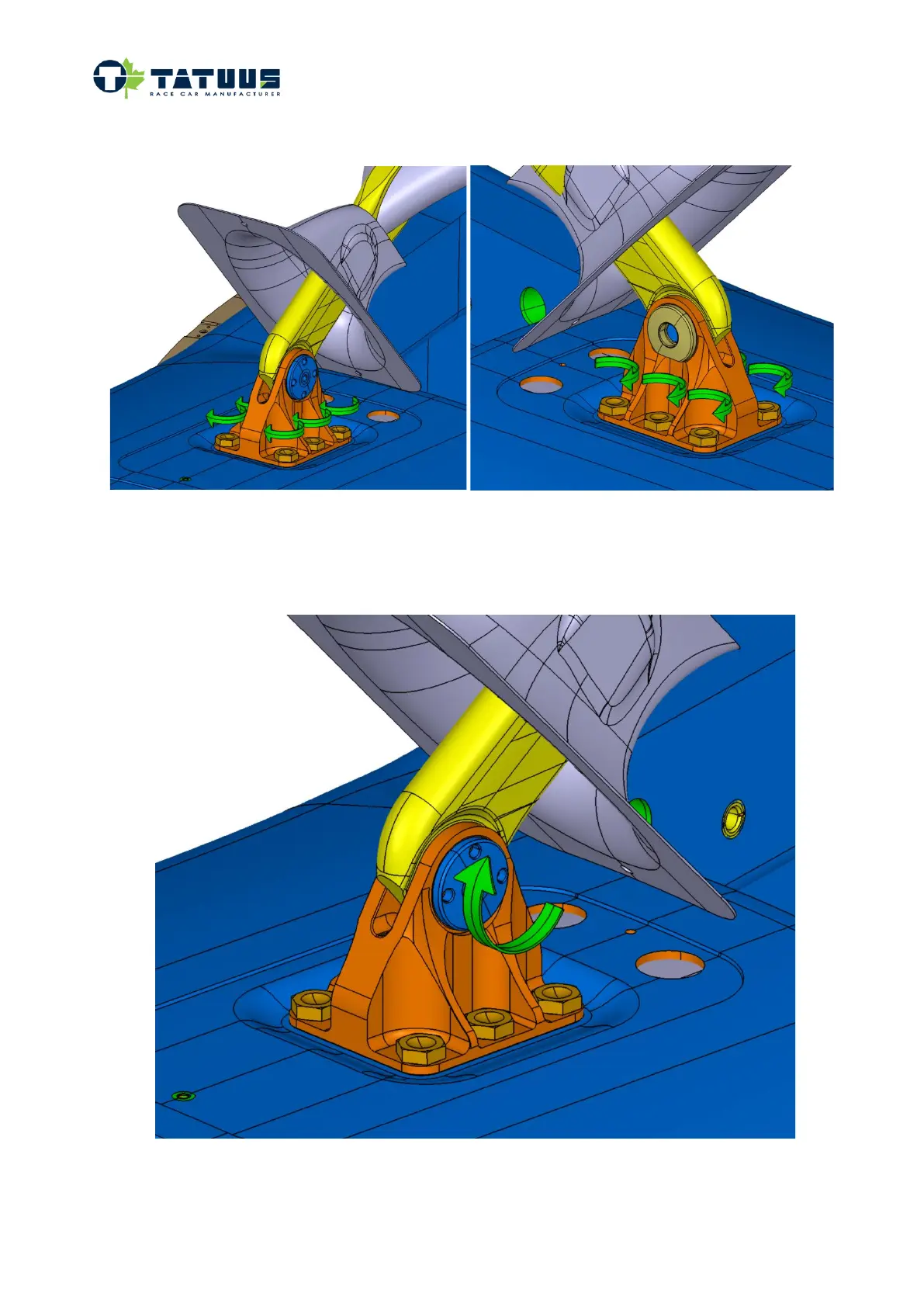

14. Tighten the six NAS6207-12 bolts. Do not tighten to target value one bolt first and then the other.
Apply the tightening torque gradually, keeping the balance on the four bolts. Target value is 51Nm.
15. Double check the tightening torque on each bolt starting from the two shoulder bolts (24-01-033),
then on the M12 bolts and finally on the NAS6207-12 bolts.
16. Tighten the HALO front fixing screw (24-01-017)
