Tatuus T-421 - Page 35

RELEASE 2.1.0
34

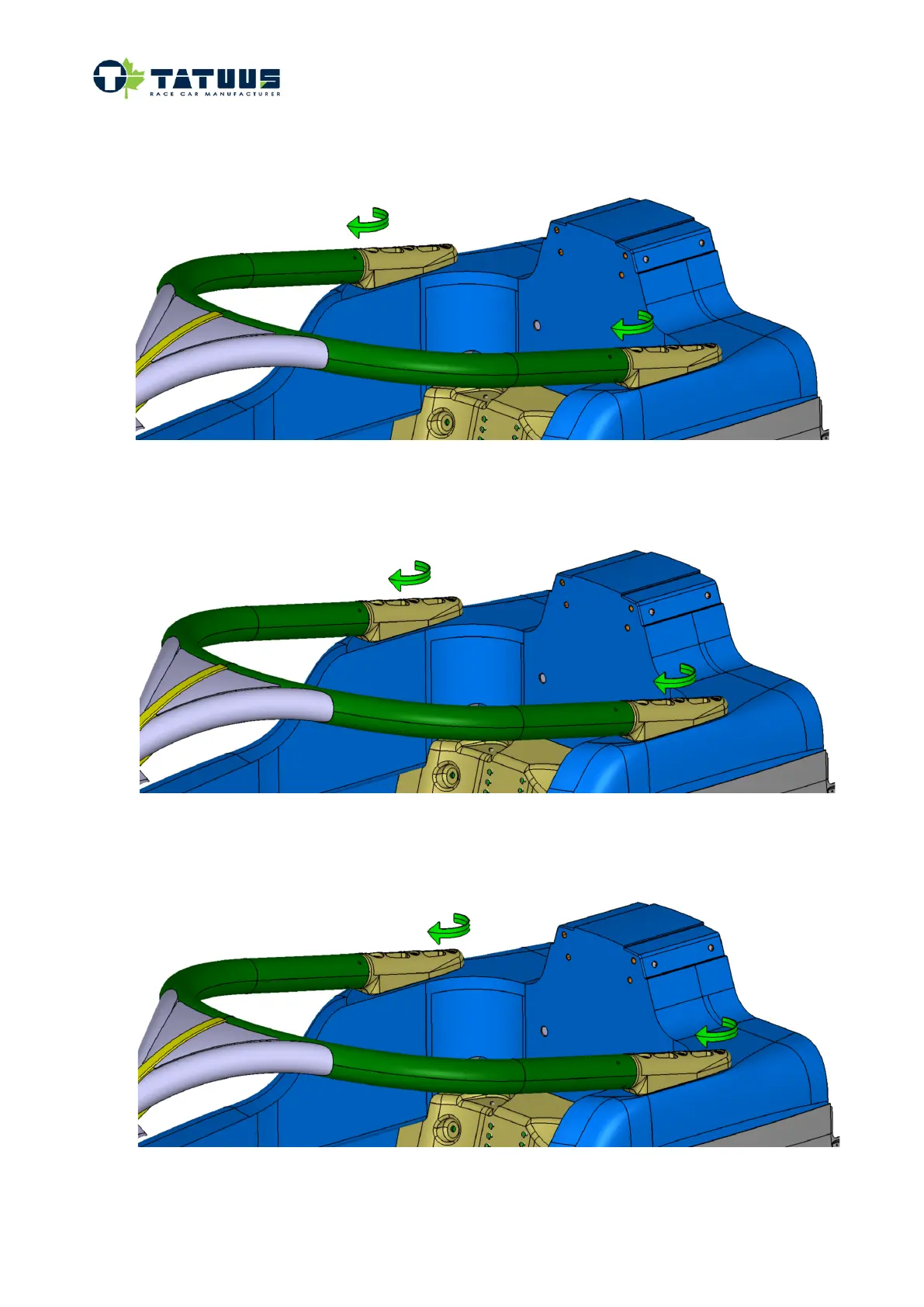

11. Tighten the two shoulder bolts 24-01-033. Do not tighten to target value one bolt first and then the
other. Apply the tightening torque gradually, keeping the balance on the two bolts. Target value is
51Nm.
12. Tighten the two M12X55 bolts. Do not tighten to target value one bolt first and then the other. Apply
the tightening torque gradually, keeping the balance on the two bolts. Target value is 51Nm.
13. Tighten the two M12X30 bolts. Do not tighten to target value one bolt first and then the other. Apply
the tightening torque gradually, keeping the balance on the two bolts. Target value is 51Nm.
