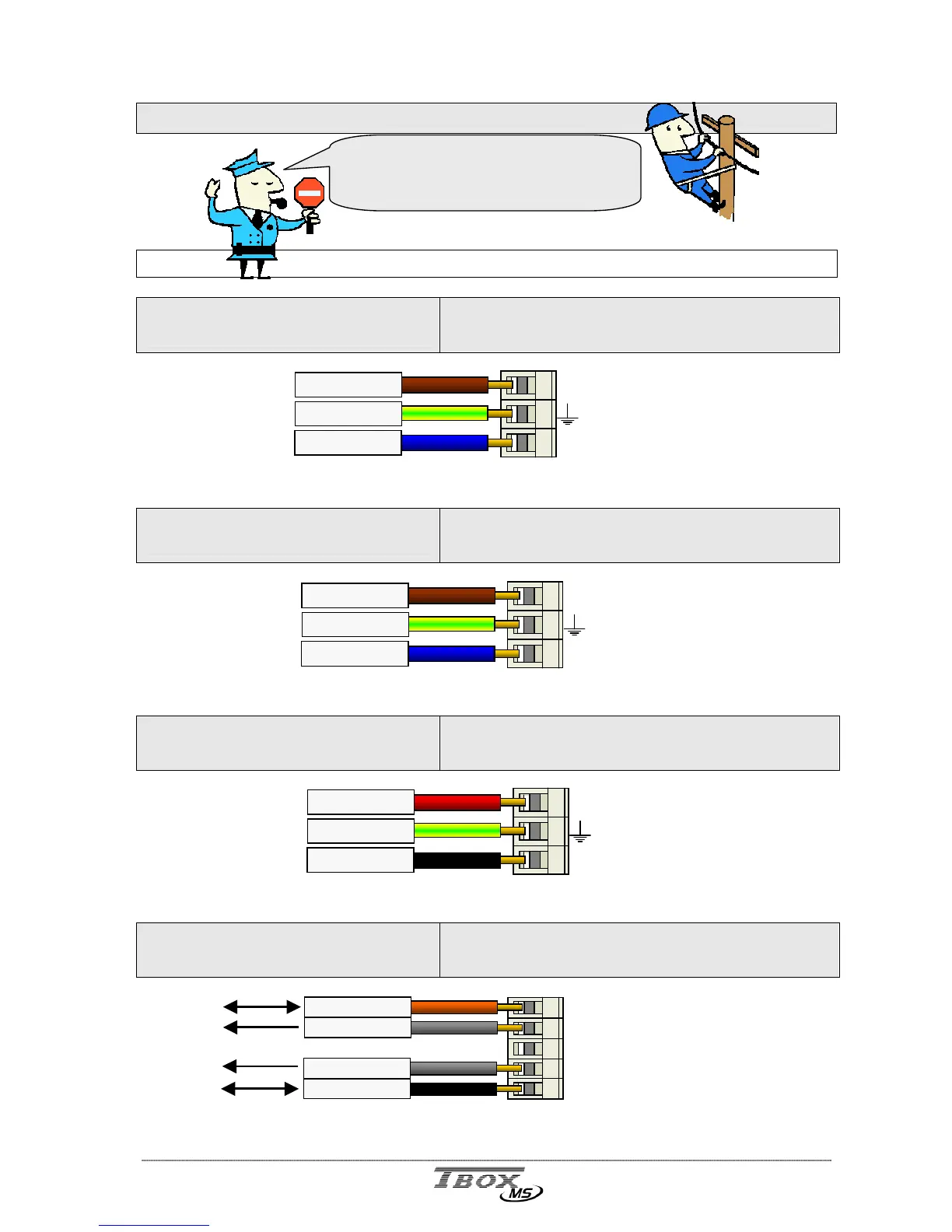

C ABLING
230 Vac Power supply
Description:
Power Supply 230 VAC
Connector: POWER UNIT
S CREW CONNECTOR (3 X 7.68 MM )
Description:
Power Supply 110 VAC
Connector: POWER UNIT
S CREW CONNECTOR (3 X 7.68 MM )
Description:
Power Supply 110 VDC
Connector: POWER UNIT
S CREW CONNECTOR (3 X 7.68 MM )
Description:
Battery
Connector: POWER UNIT
S CREW CONNECTOR (5 X 5.08)
1
~
230 Vac - L
2 3
~
earth
230 Vac - N
1 2 3 4
+Bat
Batter
y
5
+24V
Gnd
12/24 V backup
24
V
Gnd
UPS
1
~
110 Vac - L
2 3
~
earth
110 Vac - N
1
~
110 Vdc
2 3
~
earth
0
V
For electrical security reason, you
have to manipulate connectors with
power switched OFF.
