Bus setups Display or clear a bus
Display o r clear a bus
From the Bus Setup window, select the Bus number <B1-B16> or name that you want to display or
clear from the display.
To use
Select the bus number or name from the list.

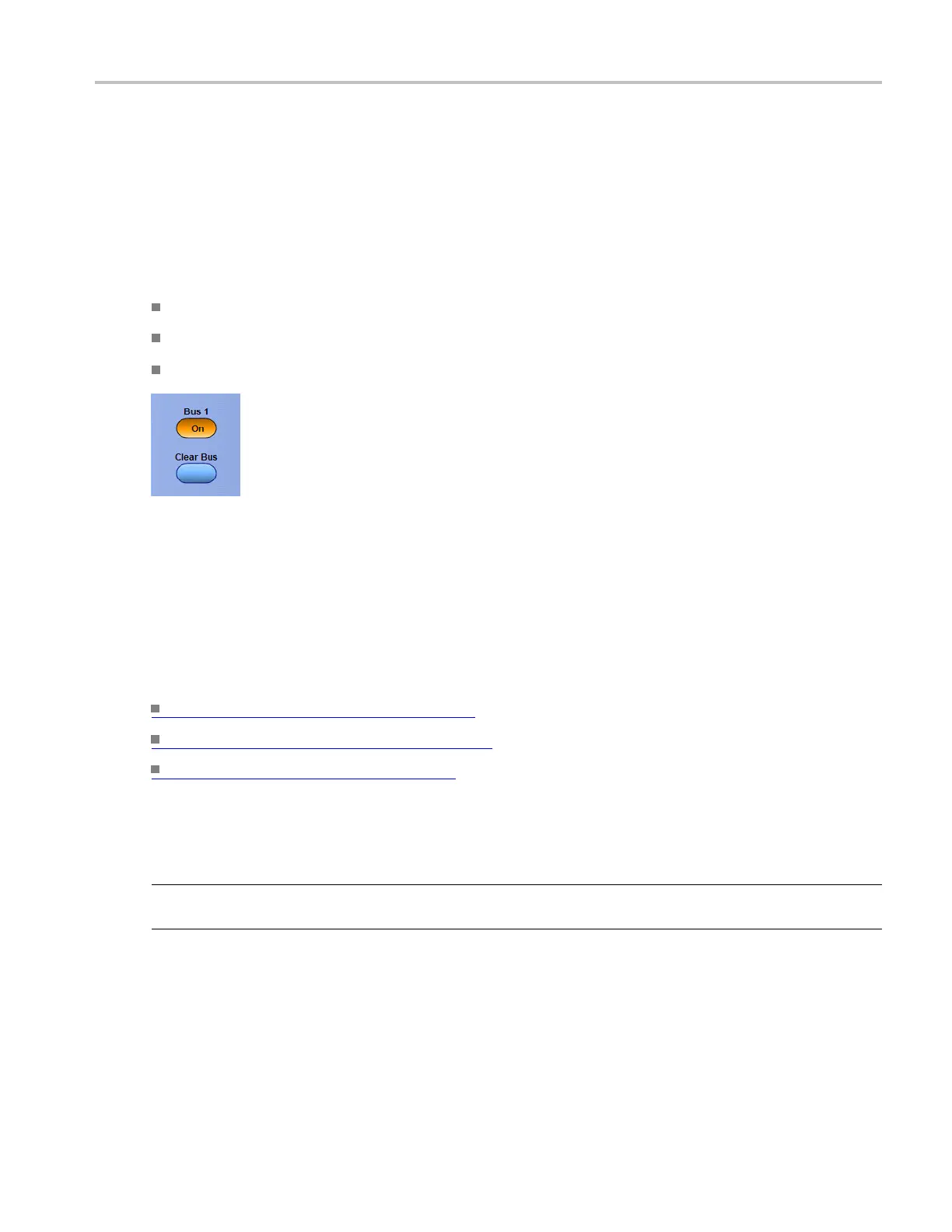

ClicktheBusbuttontoselectOnanddisplaythebus.
To clear and remove a bus, click the Clear Bus button.
Behavior
A parallel bus must be defined before it can be displayed.
When you click the Clear Bus button, the instrument removes the bus with the channels used to build the
bus, and the Bus button c hanges to Off.
What do you want to do next?
Learn more about bus setups. (see page 95)
Learn about bus configuration. (see page 148)
Learn about digital setups. (see page 87)
Label a bus
NOTE. The Label a Bus option is available only o n MSO5000, DPO7000C, DPO/DSA70000C/D, and
MSO70000C Series instruments and on DPO5000 Series instruments with option MSOE.
From the Bus Setup window, select a Bus number <B1-B16> to label from the Bus list.
To use
Double-click the Label entry box and enter a name up to 7 characters long with the keyboard.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 99
