Tektronix DSA70000D Series - Touch Screen; Instrument Calibration Control Window

To Next Page

To Previous Page

Utilities Touch Screen

Touch Screen

From the Utilities menu, highlight Touch Screen; then select Calibrate.

Overview

UsetheTouchScreensubmenutocalibratethetouchscreen.

To use

1. Select Cal

ibrate.

2. Follow the on-screen instructions.

Behavior

The Cali

brate command starts the Touch Screen calibration program.

Instrument Calibration Control Window

From the Utilities menu, select Instrument Calibration.

Overview

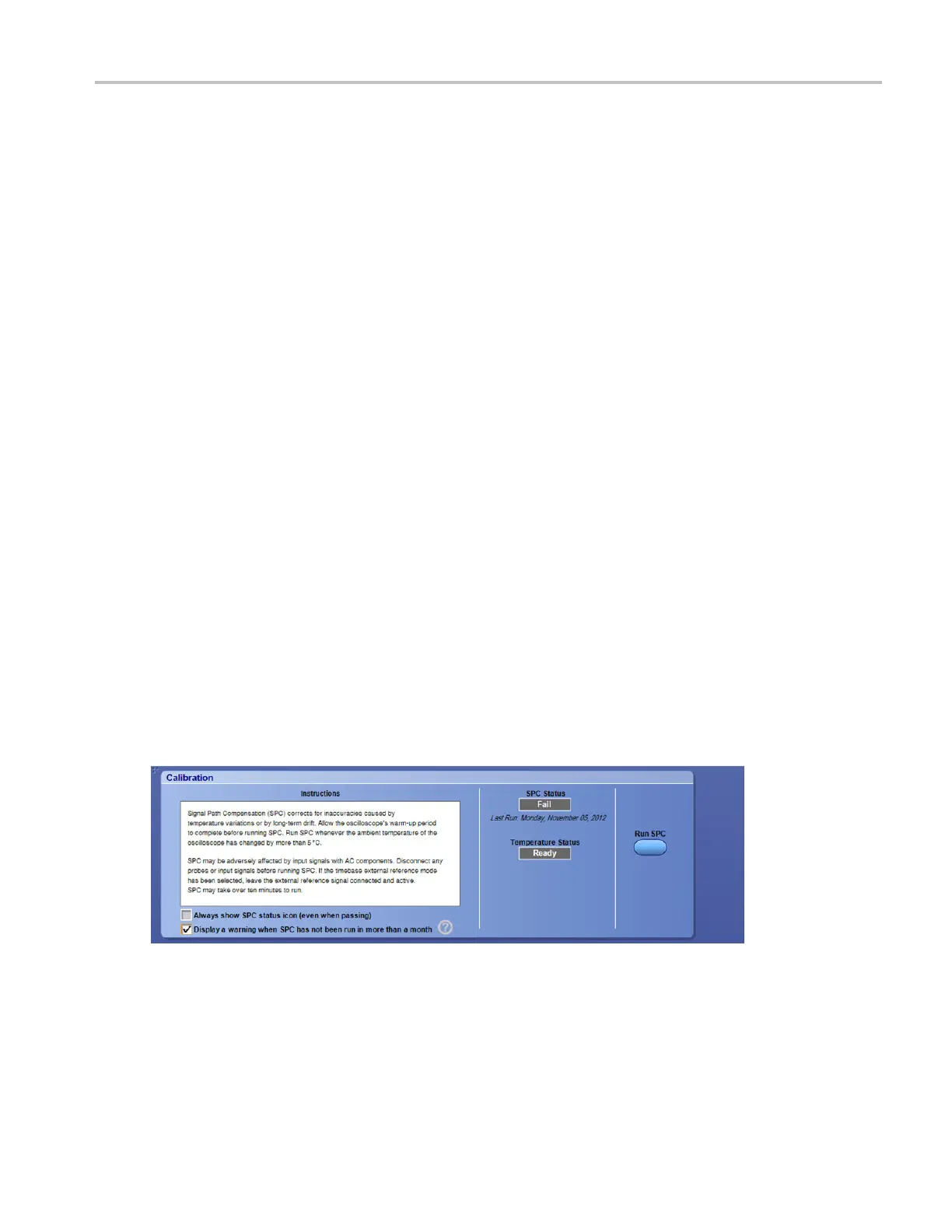

Use the Instrument Calibration control window to run the Signal Path Compensation (SPC).

To use

Click “Always show SPC status icon (even when passing)” to always display the SPC icon in the status

readout. The icon resembles a thermometer.
