Utilities Install the F loating License

Install the Fixed license. (see page 566)

Return the Floating License for the Installed Options(s). (see page 567)

Install the Floating License

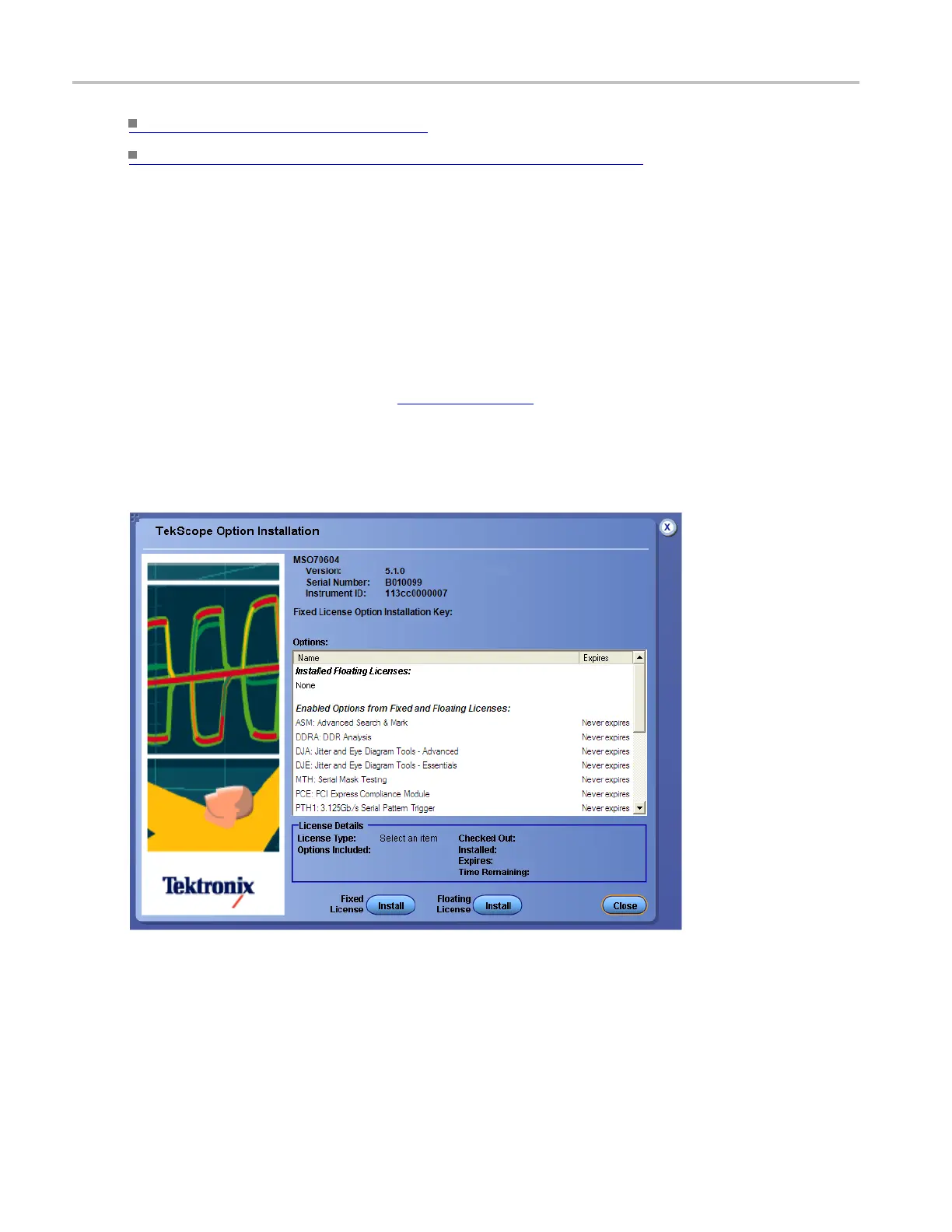

From the Utilities m enu, select Option Installation.

Overview

Use Option Installation to enable upgrades that you have purchased for your instrument from Tektronix. For

the most current list of upgrades, go to www.tektronix.com

or contact your local Tektronix representative.

To use

1. Click the Install button next to Floating License.

2. Browse to the path where the ﬂoating license key ﬁle (.lic) is located, select the ﬁle, a nd click Open.
