Oscilloscope R eference Sampling process
Signal connection

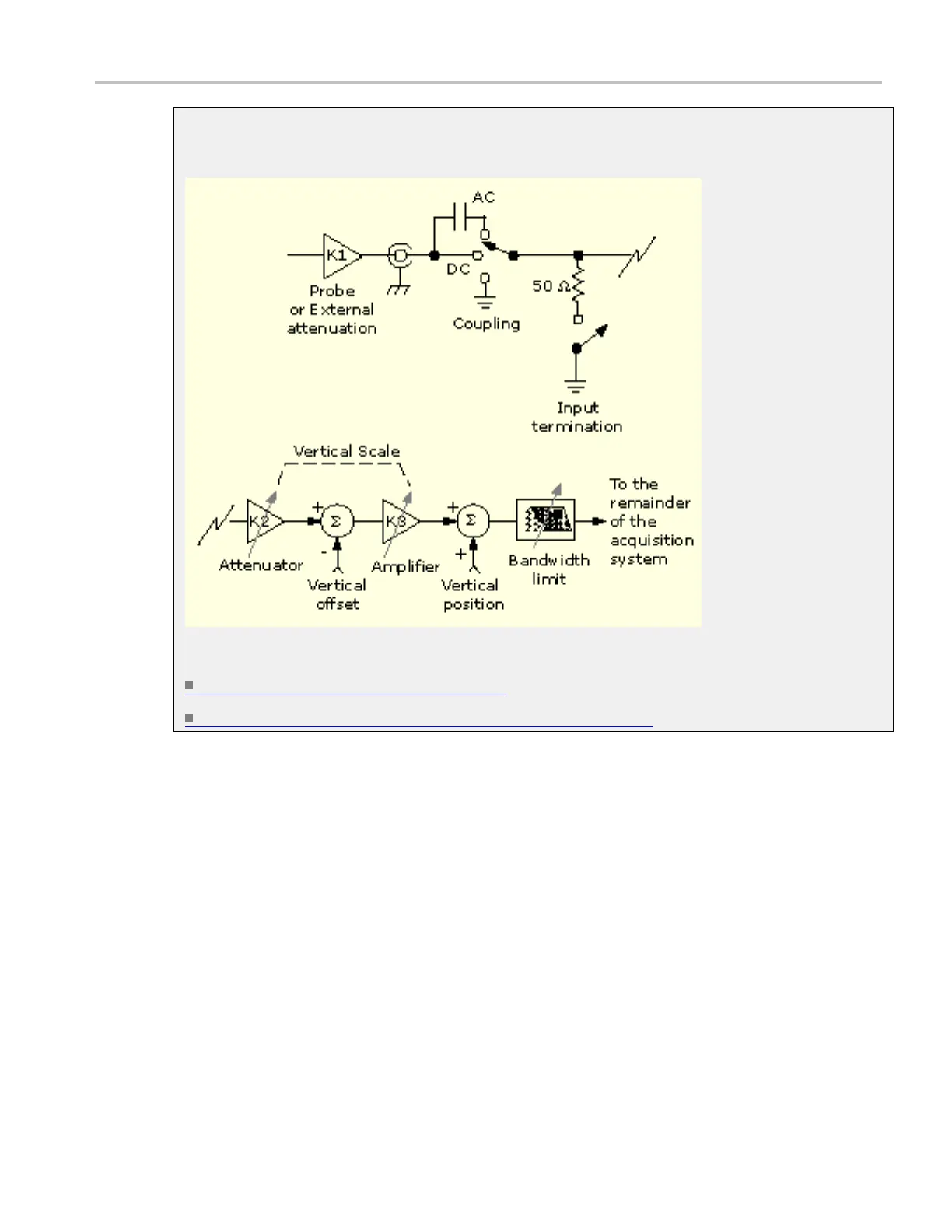

This diagram displays the signal connection model for each input channel.
What do you want to do next?
Learn more about coupling. (see page 680)
Learn more about the vertical acquisition system. (see page 681)
Sampling process
Acquisition is t he process of sampling an a nalog signal, converting it into digital data, and assembling it
int
o a waveform record, which is then stored in acquis ition memory. Sampling is the process that provides
a waveform record per trigger e vent as shown in the next figure.
