Math setups MATLAB custom analysis interface

MATLAB custom analysis i nterface

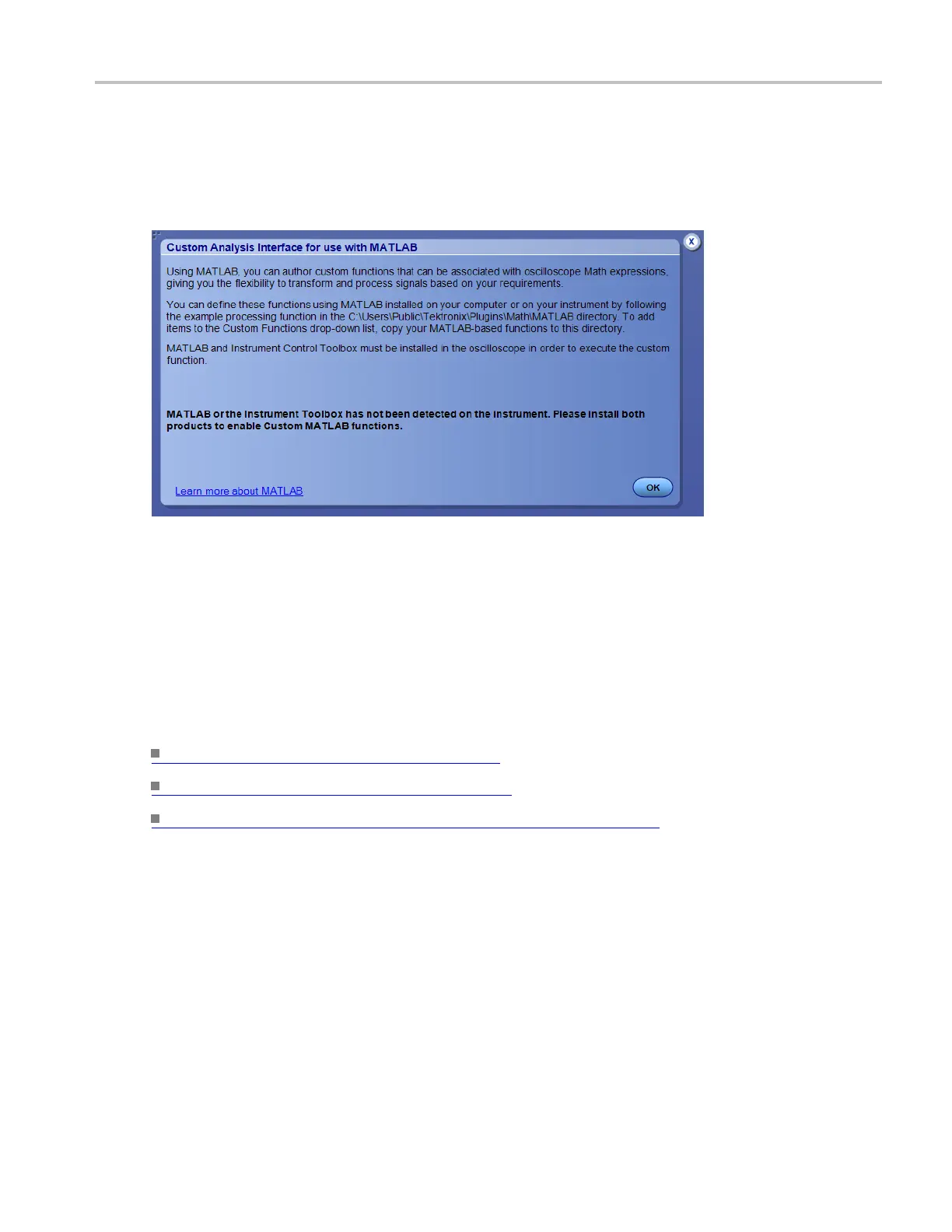

This window provides information on MATLAB plugin functions you can use in math equations.

Behavior

Clicki

ng on the link takes you to the MathWorks Web site.

Use the drop down list to select a MATLAB plugin to insert in your math equation. If MATLAB or the

instr

ument toolbox is not installed, the drop down list is replaced with a instructions to install MATLAB

and the toolbox.

What d

o you want to do next?

Learn about using Math Plugins (see page 751)

Learn about writing Math Plugins (see page 752)

Learn about writing MATLAB custom function plugins (see page 757)

Set up basic spectral analysis

From the Math menu, select Basic Spectral, or click Basic in the Math Setup control window.

Overview

Use these controls to for simple spectral analysis.
