Analyzing waveforms Set up Ethernet search parameters

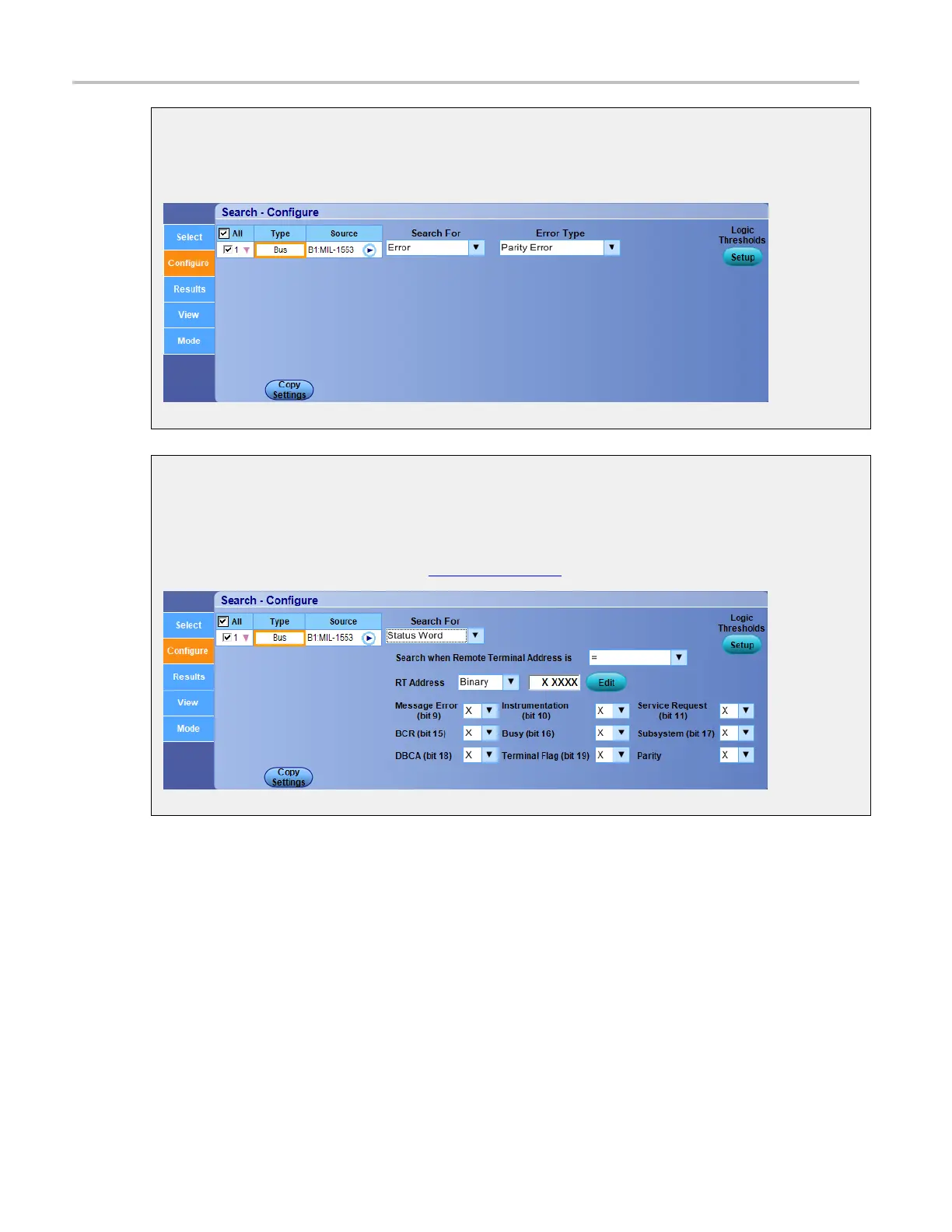

Search for error

ThedatatypeoptionavailableinSearchForErrorisErrorType.

Search for s tatus word

The data type options available in Search For Error are Message Error, Instrumentation, Service

Request, BCR, Busy, Subsystem, DBCA, Terminal Flag, Parity Search when Remote Terminal

Address is, and RT Address (click the Edit

(see page 939) button).

Set up Ethernet search parameters

After setting up an Ethernet bus, go to the Analyze menu, select Search, and then select the Bus trigger

type; then open the Conﬁgure tab.

Overview

Use the controls to set up the Ethernet Bus paramet

ers.
