Trigger setups Set up a Logic State trigger (MSO/DPO5000 and MSO70000C Series)
Set up a Logic State trigger (MSO/DPO5000 and MSO70000C Series)
NOTE. The Logic State Trigger Control Window option is available only on MSO5000 and MSO70000C
Series instr
umentsandonDPO5000Seriesinstruments with option M SOE.
From the Trig menu, select Logic State Setup.
Overview

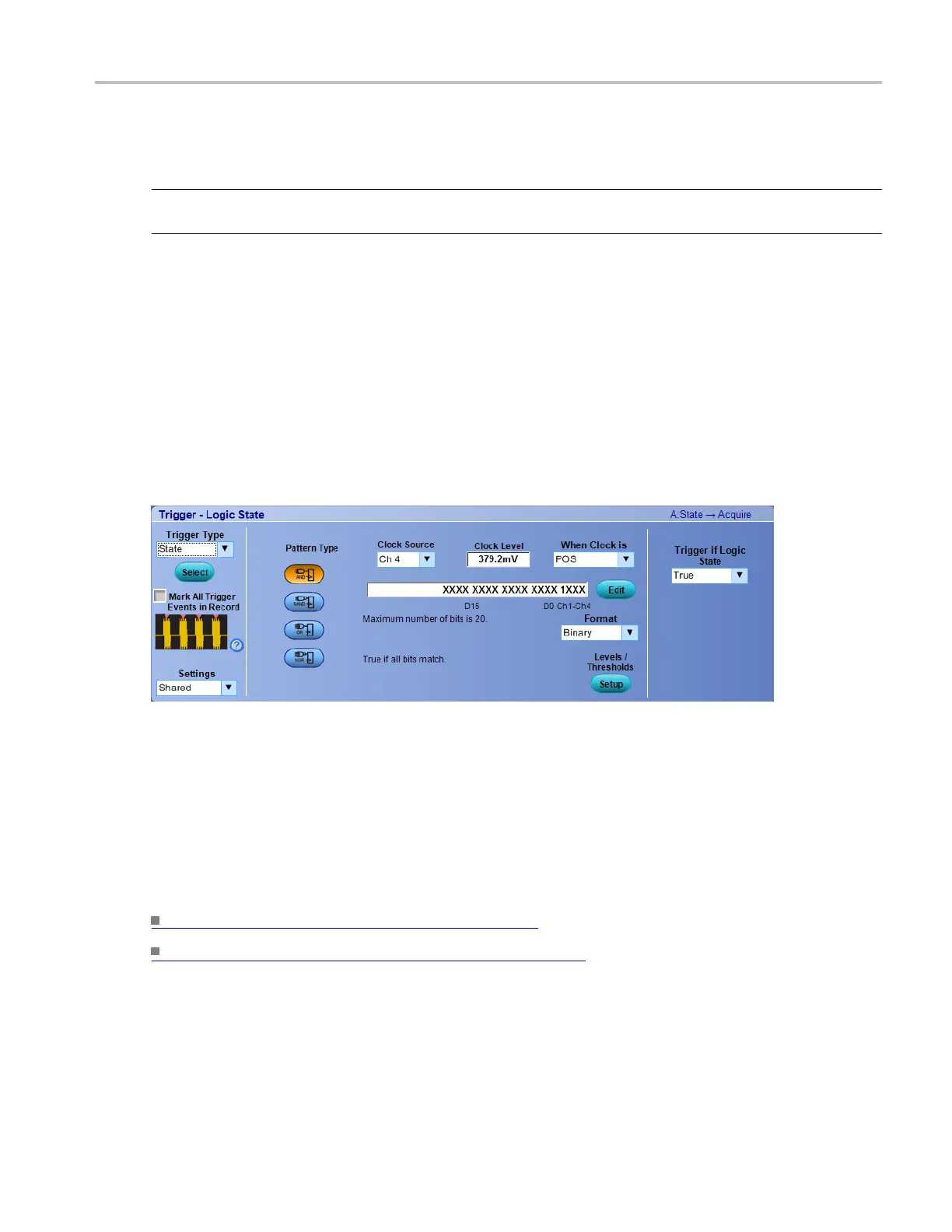

The trigger setup includes the D15-D0 digital channels. Use the controls in this window to set up the
Logic Sta
te trigger parameters.
To use
For information o n the controls, click the buttons.
Behavior
Use the Logic State trigger to trigger the instrument when all of the logic inputs to the selected logic
function cause the function to be True or False when the clock input changes state.
The Pattern Type buttons set the Boolean logic function for the trigger.
What do you want to do next?
Learn m ore about other trigger types. (see page 386)
R
eturn to the Trigger Setup control window.
(see page 385)
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 435
