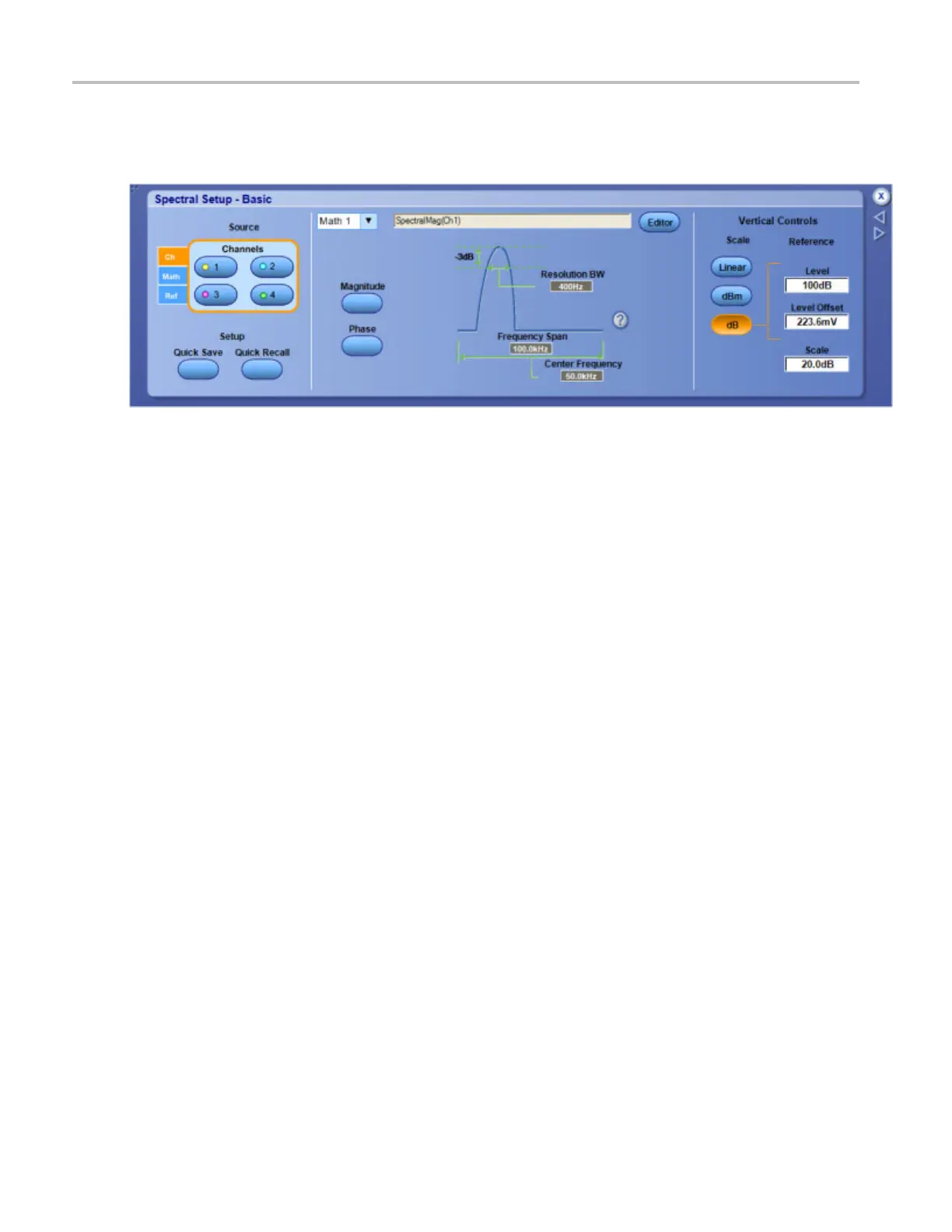

Math setups Use front panel spectral controls
To use
For information on the controls, click the buttons.
Changing the Horizontal Mode t o Manual activates the Frequency Span and Resolution B W controls.
Use front panel spectral controls
From the Math menu, select Basic or Advanced Spectral; in the Spectral Setup window, click the ? mark.
To use
To map the spectral controls to the instrument front panel, do the following:
1. From the Horz/Acq m enu, select Horizontal/Acquisition Setup.
2. Open
the Horizontal tab.
3. Under Mode, click the Manual option box.
4. Return to the Spectral Setup control w indow.
5. Use the front panel Resolution knob to directly control Frequency Span.
6. Use the Horizontal Scale knob to directly control Resolution Bandwidth.
S
et up advanced spectral analysis
F
rom the Math menu, select Advanced Spectral, or click Advanced in the Math Setup control window.
246 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
