Tektronix DSA70000D Series - FFT Process; The FFT Display

To Next Page

To Previous Page

Math setups FFT process

FFT process

The FFT process m athematically converts the standard time-domain signal (repetitive or single-shot

acquisition) into its frequency components.

The FFT function process es the waveform record and displays the FFT frequency domain record, which

contains the input signal frequency components from DC (0 Hz) to ½ the sample frequency (also called

the Nyquist

frequency

(see page 173)).

The FFT display

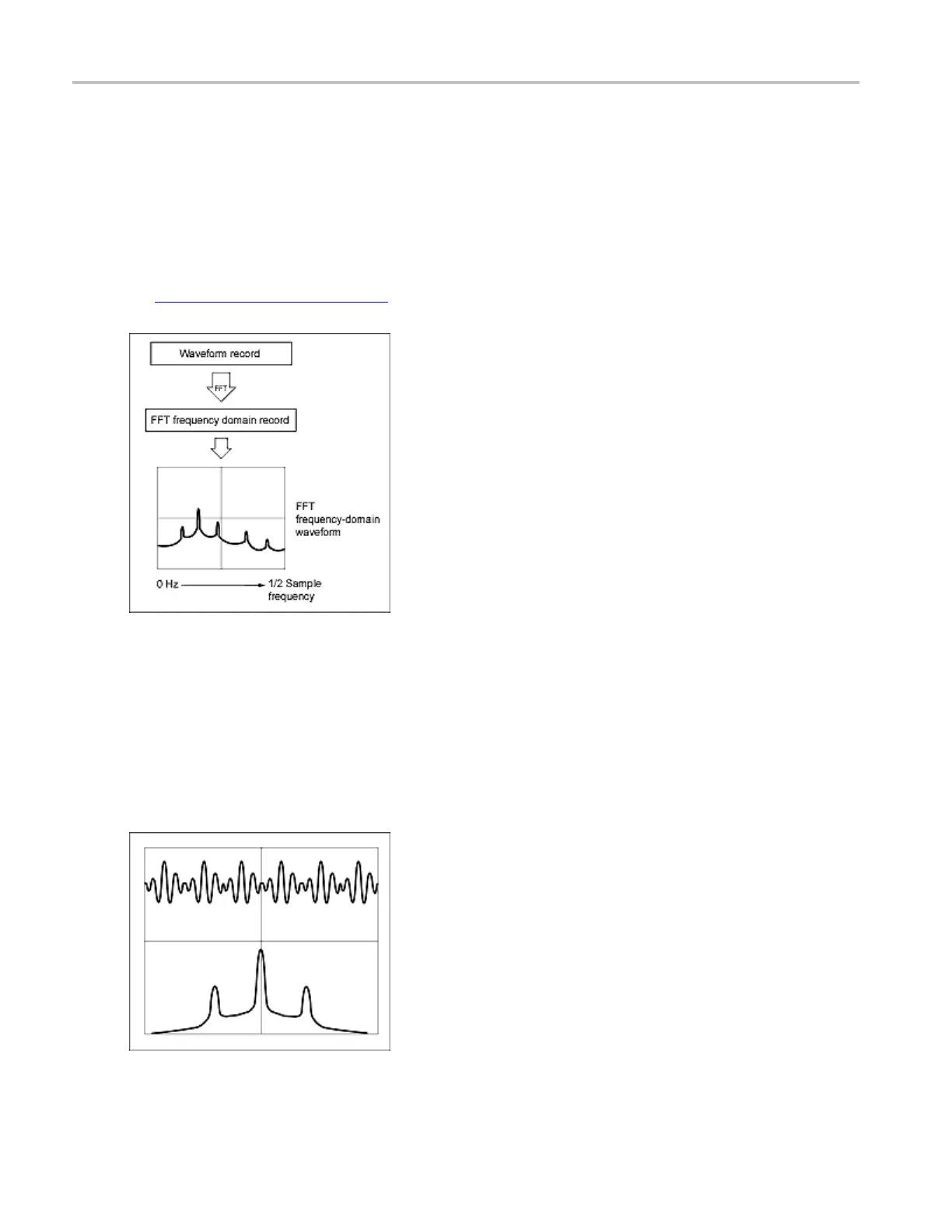

The following illustration shows a typical time-domain w aveform and the frequency components of that

signal as part of the math FFT waveform.

252 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
