Utilities User Preferences: Units

User Preferences: Units

From the Utilities menu, select User Preferences; then open the Units tab.

Overview

Use the Units tab to set the detents for the vertical scale controls.

To use

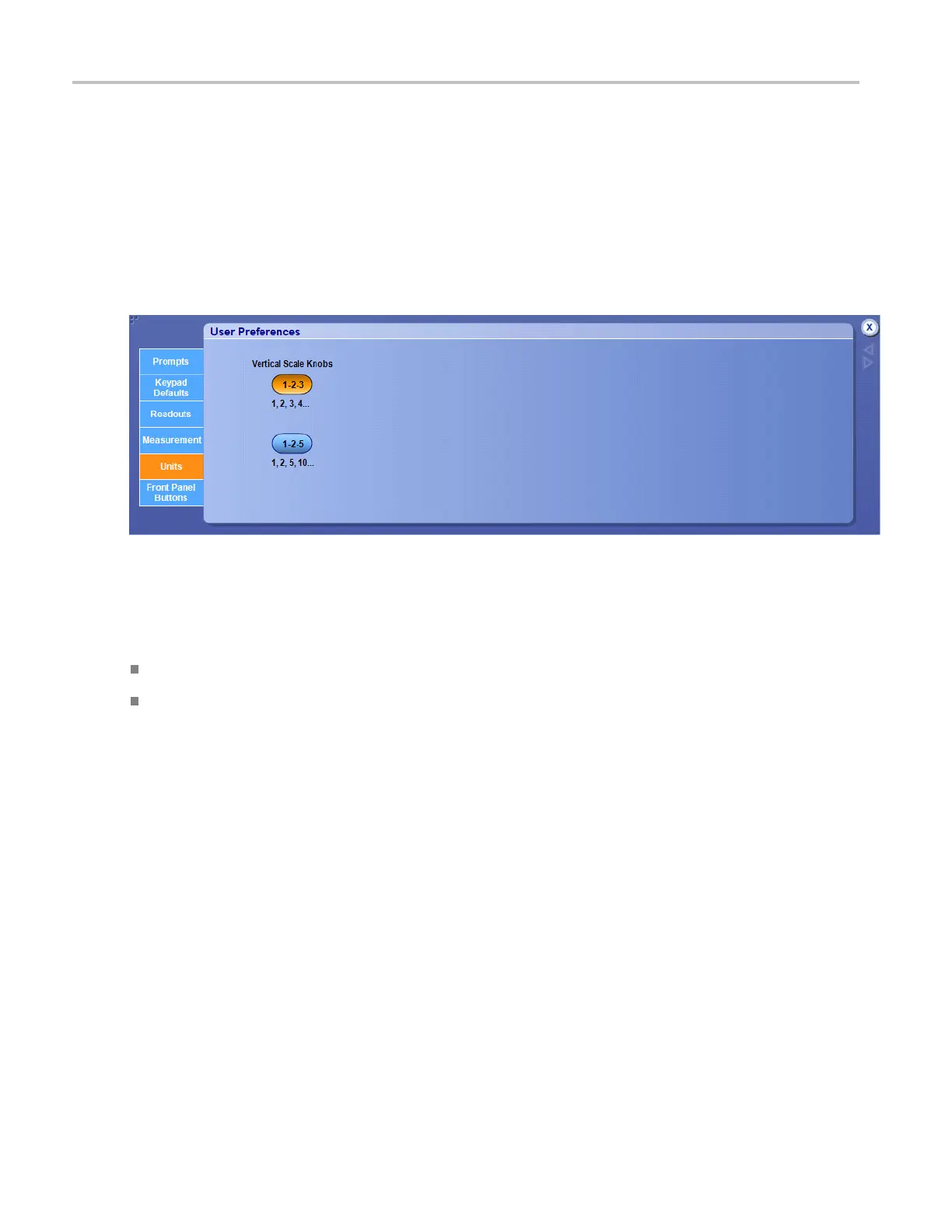

Click one of the buttons to set the vertical scale detents:

Click 1–2–3 to set the vertical detent increments to 1, 2, 3, 4...

Click 1–2–5 to set the vertical detent increments to 1, 2, 5, 10...

Behavior

If the user preference is set to 1–2–3, the vertical knobs will increase or decrease the scale in a 1–2–3...

10–20–30... 100–200–300... sequence.

If the user preference is set to 1–2–5, the vertical knobs will increase or decrease the scale in a 1–2–5...

10–20–50... 100–200–500... sequence.
