Utilities Tek Secure Erase

Tek Secure Erase

From the Utilities menu, select Tek Secure Erase.

Overview

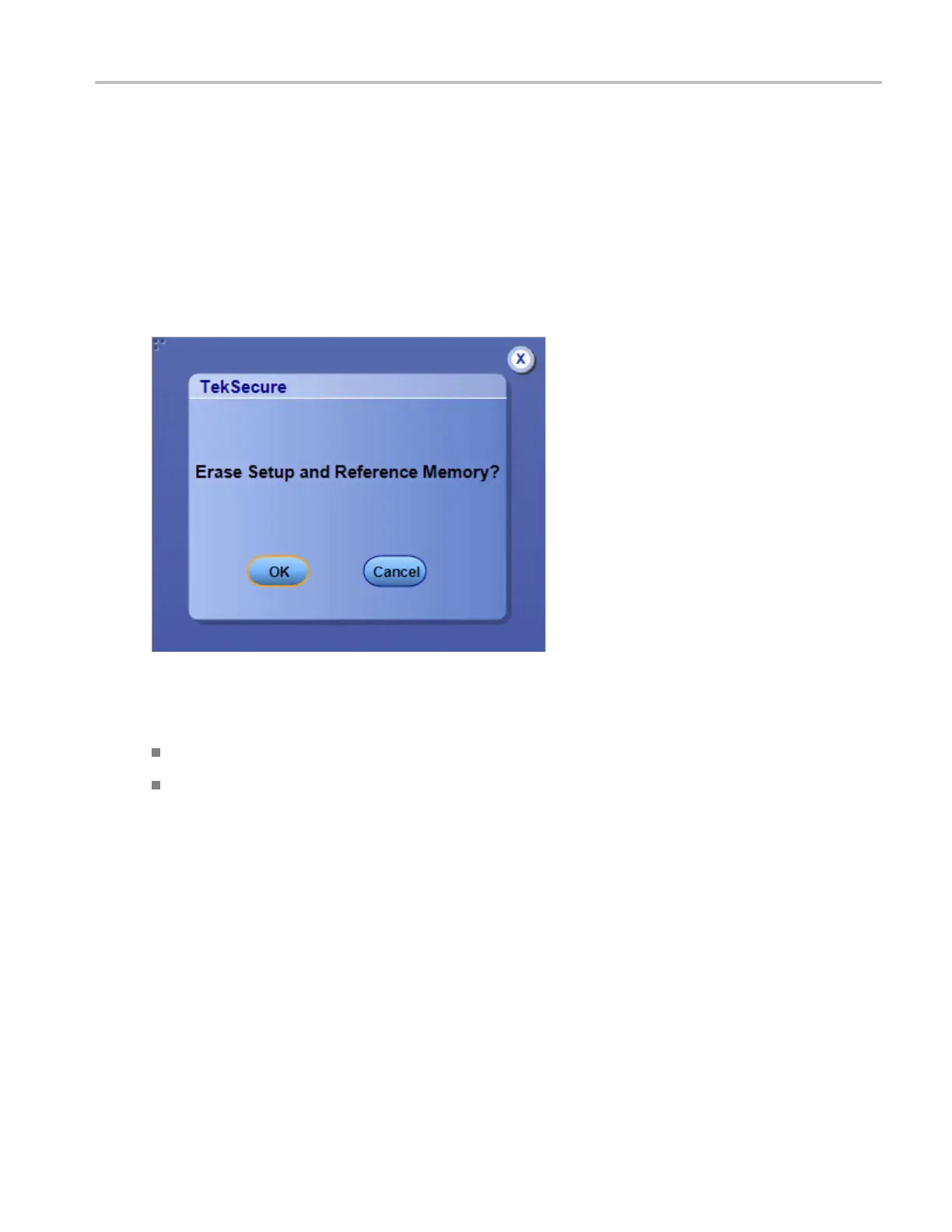

Use TekSecure to erase all waveforms and instrument setups.

To use

ClickOKtoerase.

Click Cancel to exit the dialog box.

Behavior

Tek Secure Erase removes all reference waveform and instrument setup memory locations. Erased setups

are replaced with the default factory setups. This is useful if you are using the instrument to gather

sensitive or secure data.

Set Time and Date

From the Utilities menu, select Set Time & Date.
