Oscilloscope Reference Horizontal position and the horizontal reference point

Horizontal position and the horizontal reference point

The time value you set for horizontal position is measured from the trigger point to the horizontal reference

point. This is not the same as the time value from the trigger point to the start of the waveform record,

unless you se

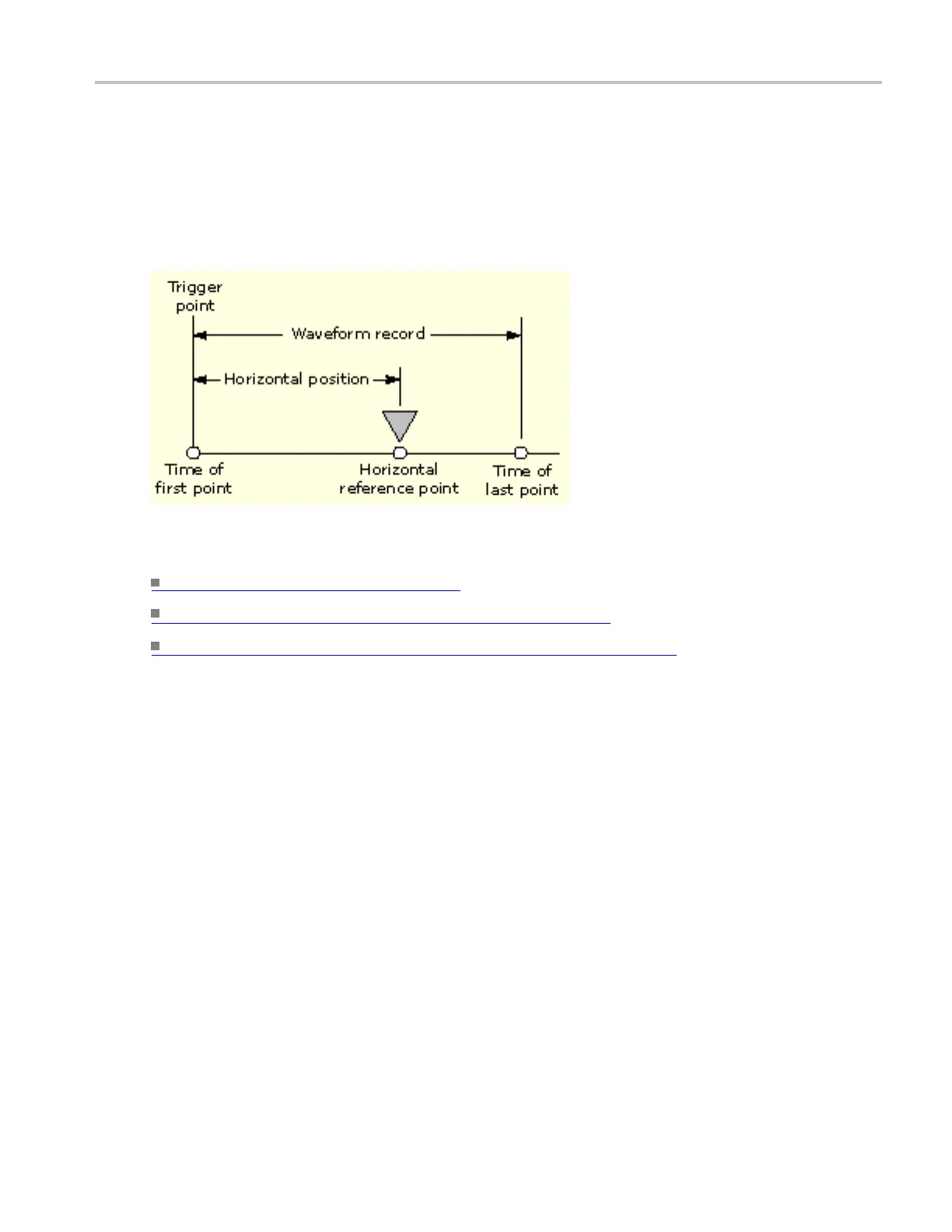

t the horizontal reference to 0%. See the next ﬁgure.

What do you want to do next?

Learn about interpolation. (see page 692)

Learn a

bout using the MultiView Zoom feature.

(see page 724)

Go to a step-by-step procedure for displaying waveforms. (see page 662)

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 723
