Oscilloscope Reference Select the reference color
Select the reference color
From the Display menu, select Colors, or open the Colors tab in the Display control window.
To use

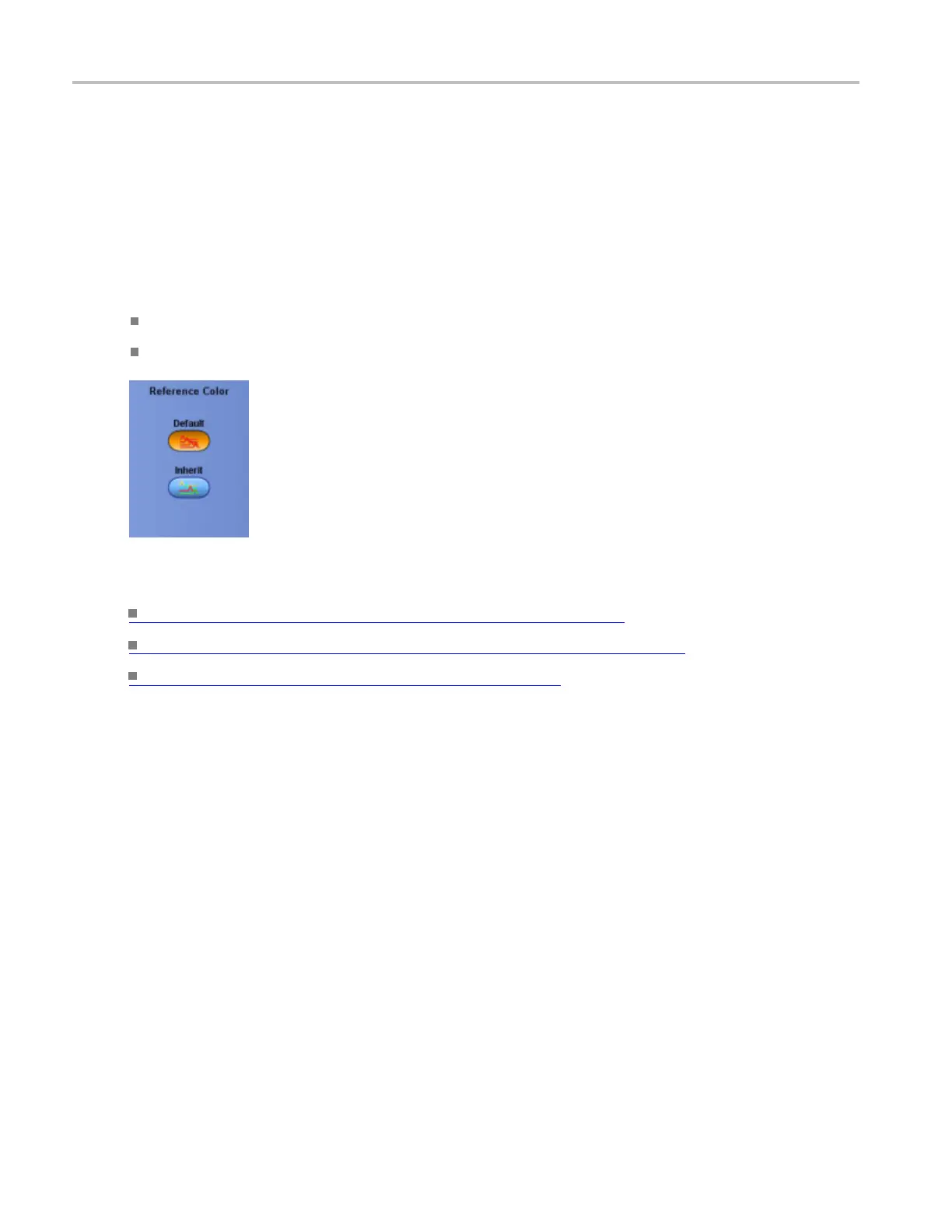

Click one of the buttons to select the color scheme for reference waveforms.
Click Default to use the default system color for the selected reference w aveform.
Click Inherit to use the same color as the original waveform.
What do you want to do next?
Learn about changing the overall display appearance. (see page 163)
Learn about changing the appearance of objects in the display. (see page 167)
Learn about using text with screen displays. (see page 164)
Display menu
Use Display menu options to change the way that waveforms appear on the instrument. This includes the
style, intensity, color, format, text, and persistence. You can also change the graticule type and the items
that appear on the display, such as date and time.
Select the trigger level marker
From the Display menu, select Objects, or open the Objects tab in the Display control window.
To use
Click one of the buttons to select the trigger level indicator.
