Tektronix DSA70000D Series User Manual

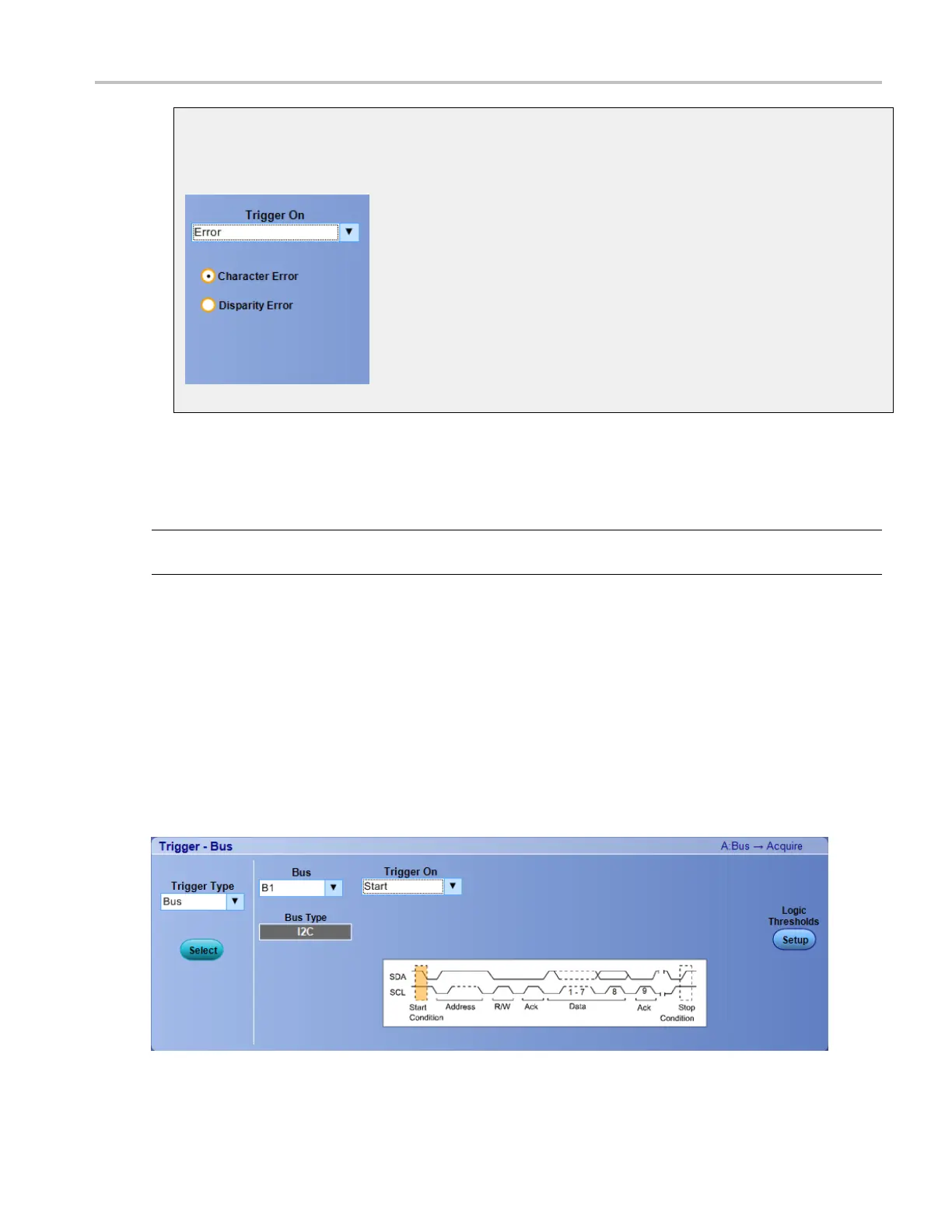

Trigger setups Set up an I2C bus trigger
Trigger on Error
The error type o ptions available in Trigger on Error are as follows:
Set u p an I2C bus trigger
NOTE. The Bus Trigger Control Window for I2C Serial option is available only on instruments with
option SR-EMBD.
From the Trigger menu, select the Bus setup.
Overview
Use the controls to set up the I2C Bus parameters.
To use
For information o n the controls, click the buttons.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 395
