Trigger setups Trigger on nth Event (Horizontal Delay on)
Return to the Trigger Setup control window. (see page 385)
Trigger on nth Event (Horizontal Delay on)
From the Trig menu, select A - B Trigger Sequence.
Overview
Use the controls in this window to define the p arameters for the A ->B Sequence trigger with Horizontal
Delay on.
For information on the controls, click the buttons.

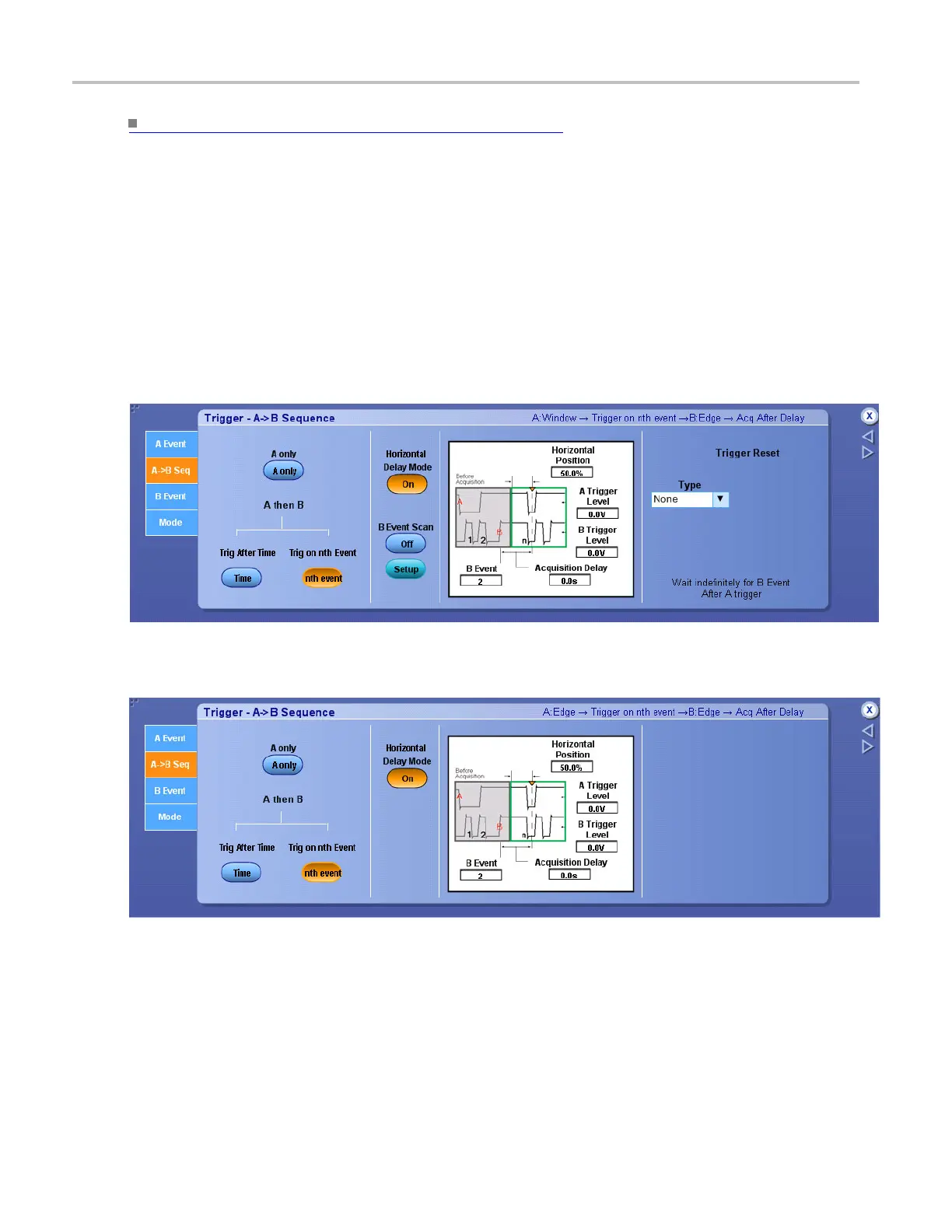

The following screen appears on MSO/DPO5000 Series instruments:
To use
1. Set up the A Event and B Events from their individual tabs.
452 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
