Trigger setups Trigger After Time (Horizontal Delay off)

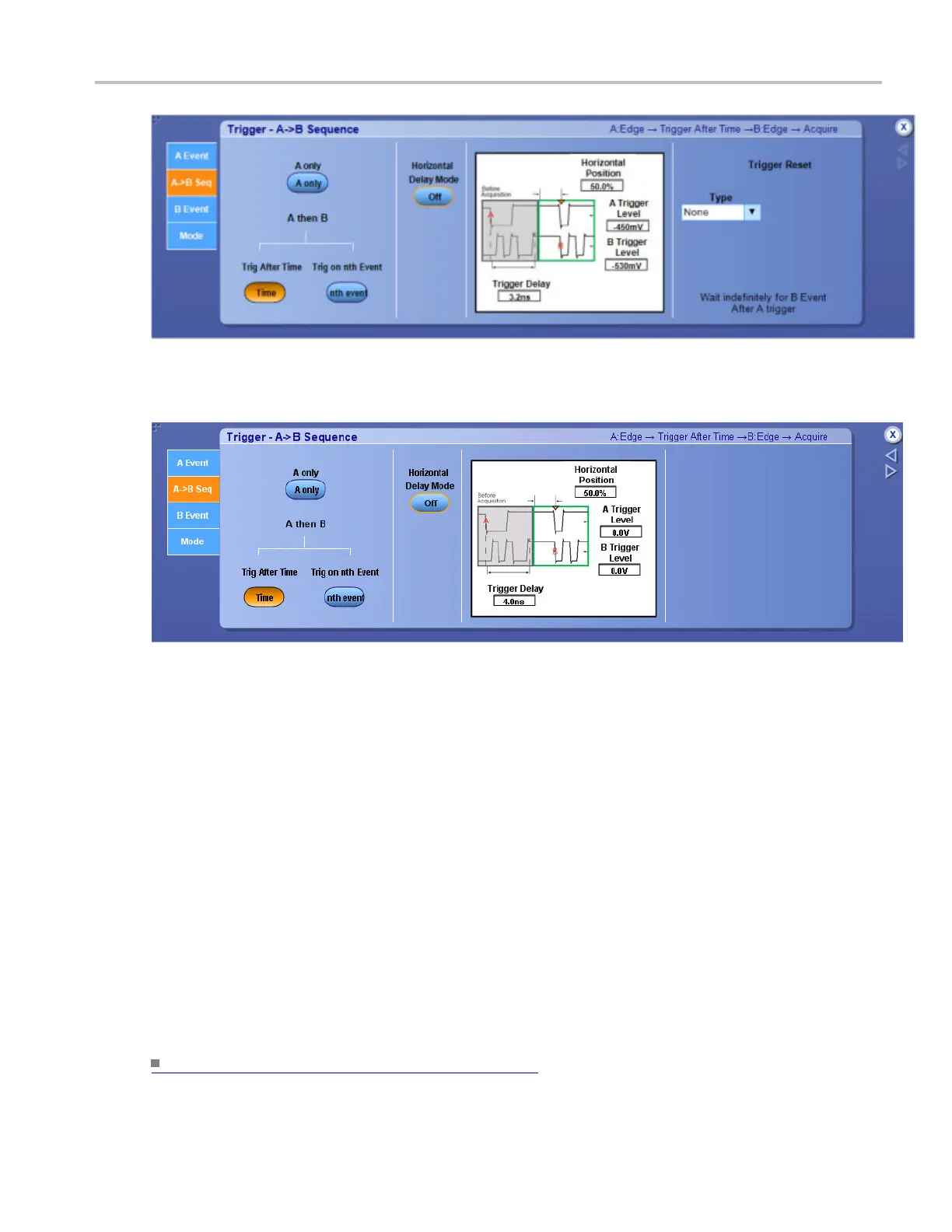

The following screen appears on MSO/DPO5000 Series instruments:
To use
1. Set up the A Event and B Events from their individual tabs.
2. Select the A–>B Seq tab; then click Trig After Time.
3. Click to set the Horizontal Delay Mode button to Off.
4. Select the trigger delay time with the Trig Delay control.
5. Adjust the Horiz Position and B Trig Level controls as necessary.
Behavior
When you select Trig After Time, the instrument looks for the trigger conditions specified by the A
event. After the A event arms the trigger system, the instrument triggers on the n ext B event that occurs
after the time specified by the Trig Delay control.
What do you want to do next?
Learn m ore about other trigger types. (see page 386)
