Oscilloscope Reference Triggering with Horizontal Delay on

What do you want to do next?

Learn m ore about sequential triggering. (see page 712)

Learn about advanced triggers. (see page 702)

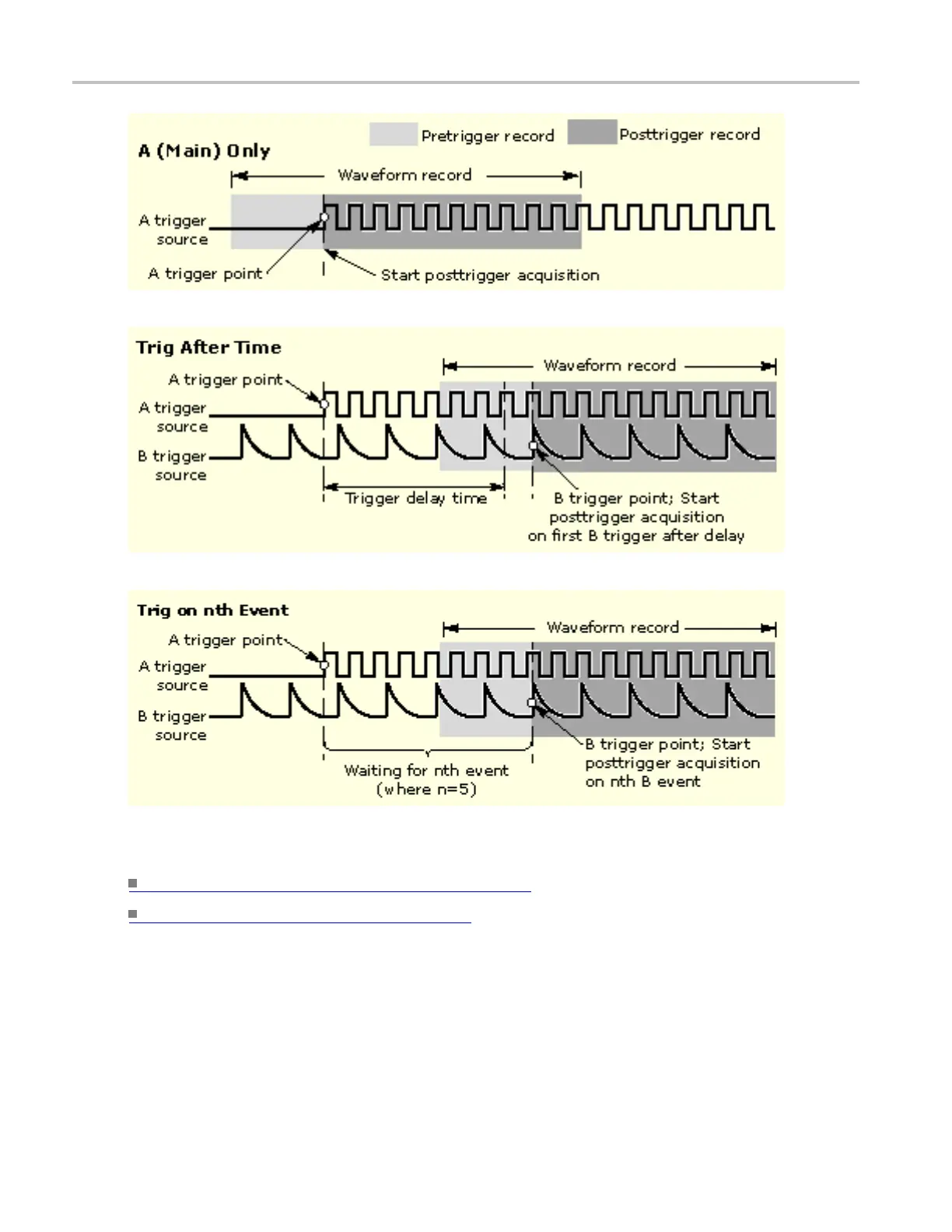

Triggering with Horizontal Delay on

You can use horizontal delay when you want to acquire a waveform record that is separated from the trigger

event by a signiﬁcant interval of time. The horizontal delay function can be used with any trigger setup.
