Oscilloscope Reference Triggering with Horizontal Delay on

You can turn horizontal delay on and off from the front panel, the Horizontal/Acquisition control window,

and many of the Trigger control windows.

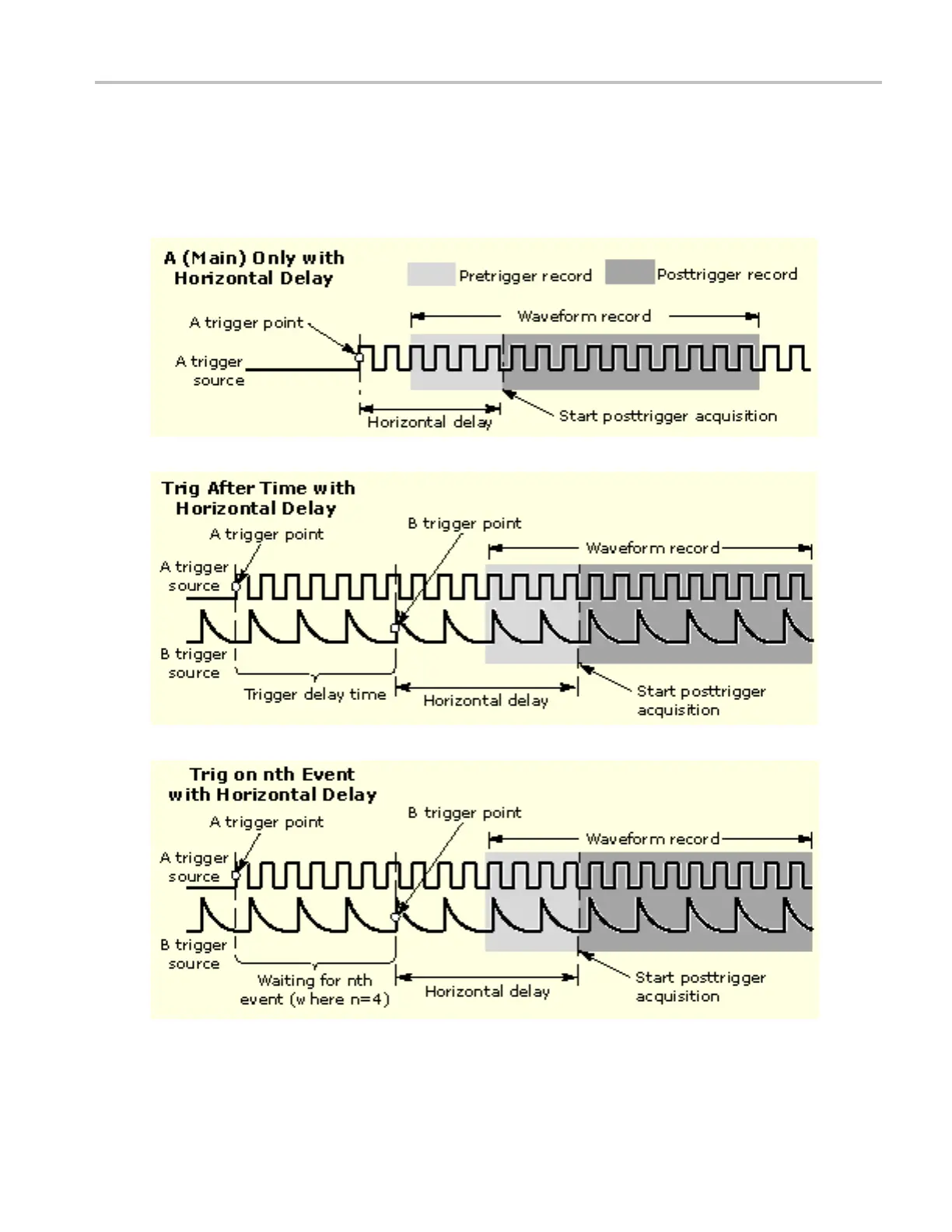

The next ﬁgure c ompares the sequential trigger choices A Only, Trig After Time, and Trig on nth Event

when horizontal delay is on. Each illustration shows where pretrigger and posttrigger data is acquired

relative to the trigger event.

What do you want to do next?
