Math setups Custom analysis functions

Custom analysis functions

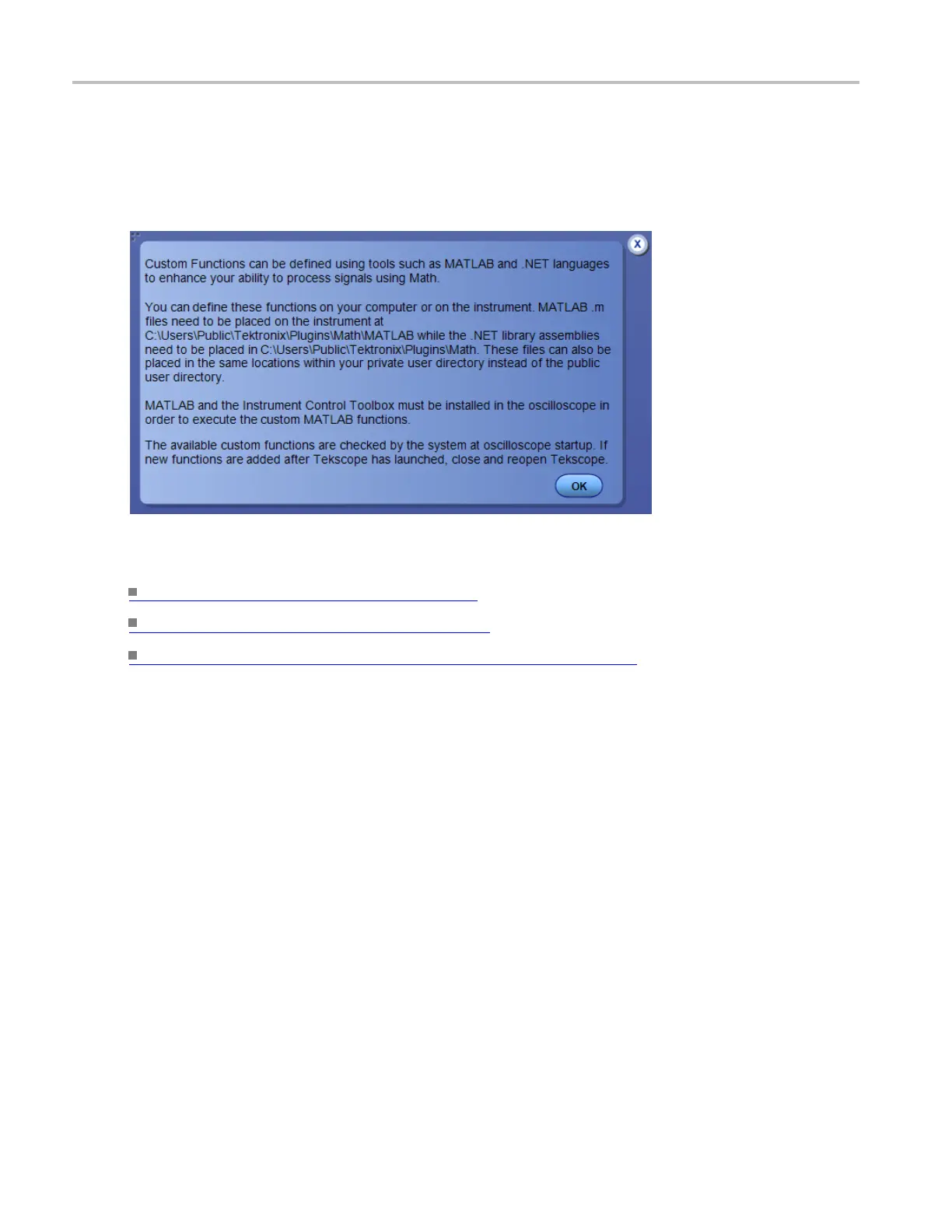

This window provides information on MATLAB and .NET plugin functions you can use in math equations.

What do you want to do next?

Learn about using Math Plugins (see page 751)

Learn a

bout writing Math Plugins

(see page 752)

Learn about writing MATLAB custom function plugins (see page 757)

244 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
