Measurement setups Measurement Setup control window (Amplitude tab)
To change the source for taking a snapshot, select another channel, math, or reference memory waveform
and then execute snapshot again.
TIP. For infor
mation on measurement algorithms, refer to the Automatic Measurement Algorithms and
Methods for High-Performance Communications Applications application note, 85w_15763.pdf
.This
application note is available from the www.tektronix.com Web site.
What do you want to do next?
Return to t
he Measurement control window overview.
(see page 268)

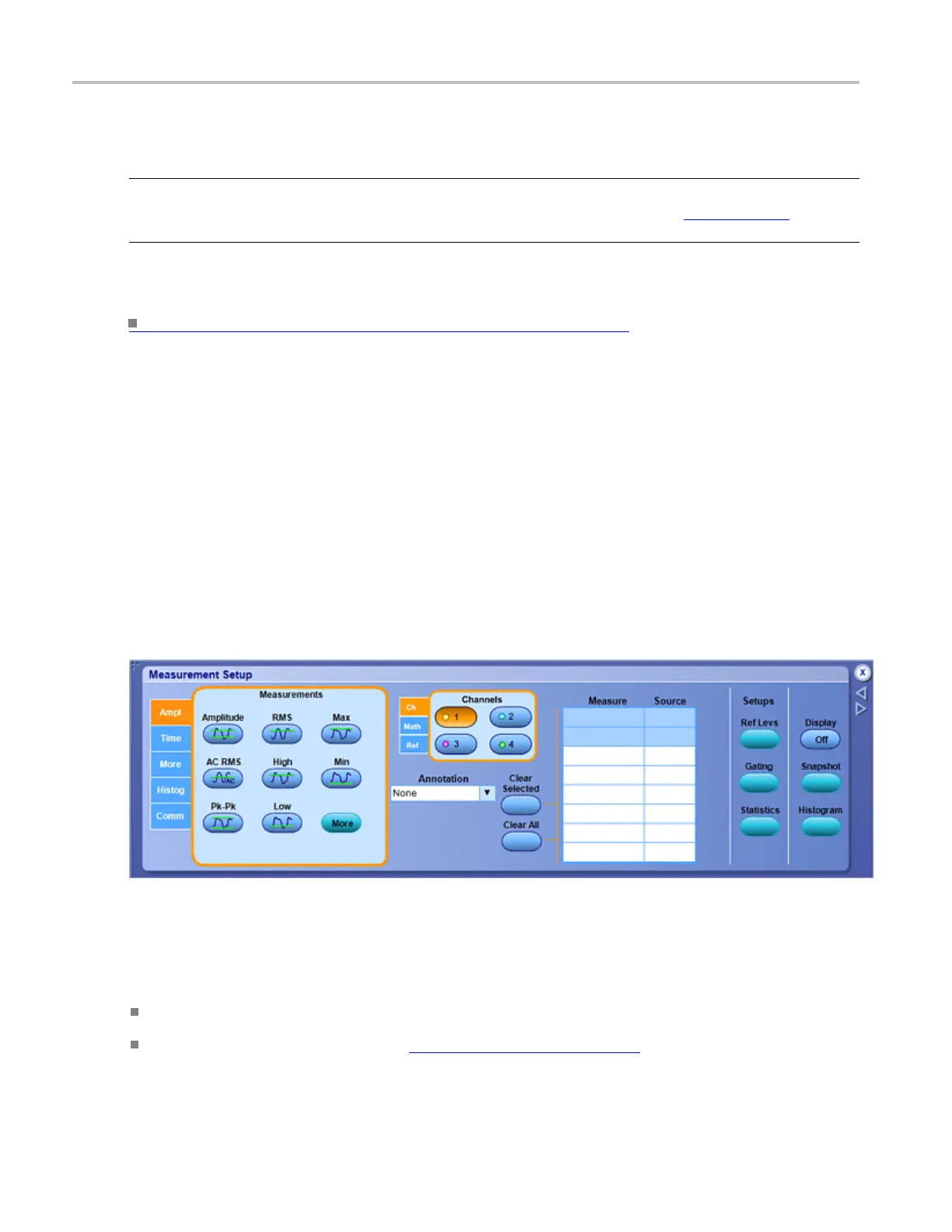

Measurement Setup control window (Amplitude tab)
From the Measure menu, select Measurement Setup; then open the A mpl tab.
Overview
Use this control window to set up the instrument for taking automatic amplitude measurements.
To use
For information on the controls, click the buttons.
Behavior
From this control window, you can do the following:
Define amplitude measurements for the selected waveforms.
Select a waveform source using the Channels Selector (see page 258). You can measure live
waveforms, math waveforms, or reference waveforms.
268 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
