Tektronix DSA70000D Series - Set up Limit Test Failure Notication

Mask testing s etups Set up limit test failure notification
Set up l imit test failure notification
From the Mask menu, select Limit Test Setup; then open the Failure Notification tab.
Overview

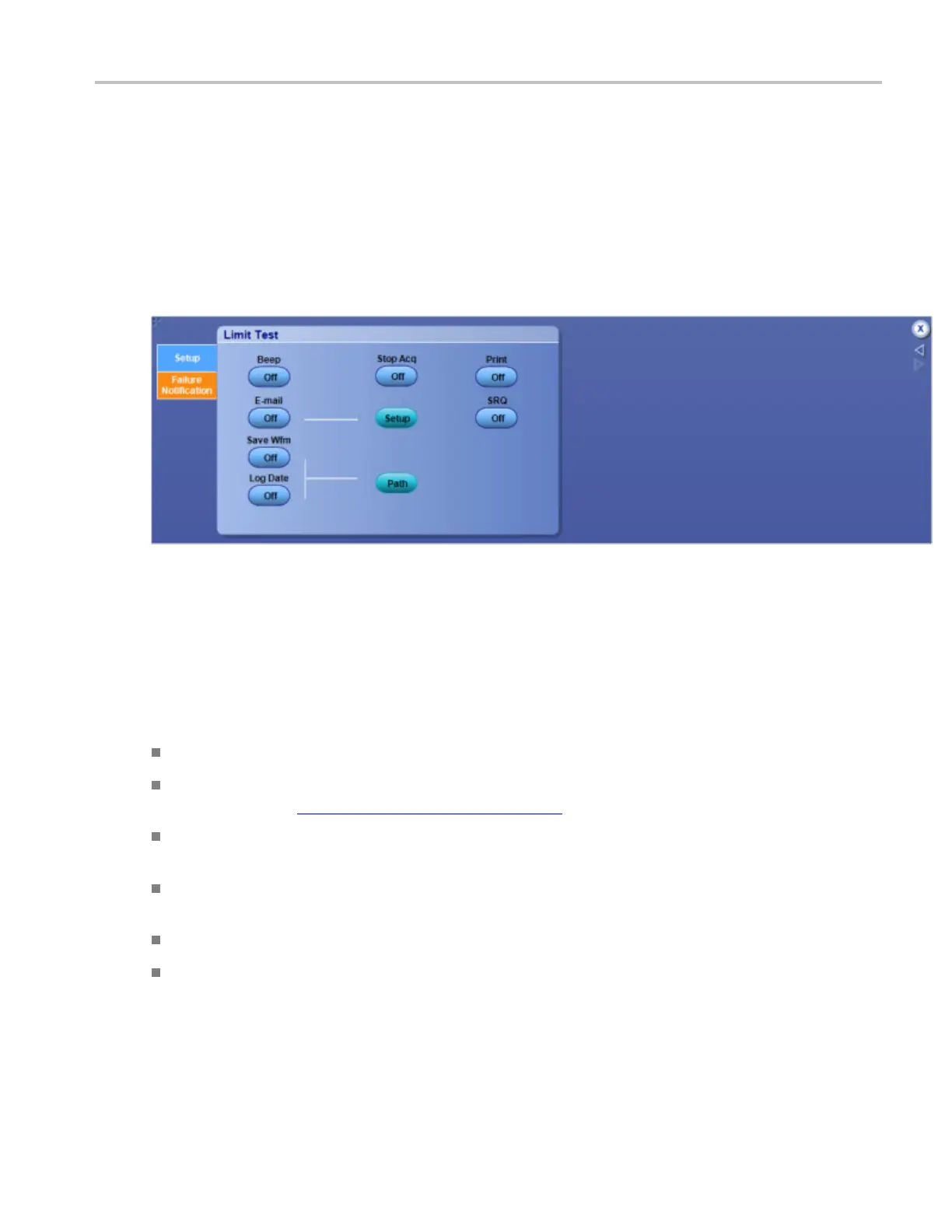

Use the Limit Test controls to set the mode of failure noti fi cation when a mask limit test fails.
To use
Click a button to switch the control on o r off. Use the controls to indicate the failure notification method,
if a waveform fails a mask limit test.
Behavior
Beep. When Beep is On, the instrument beeps if a mask test fails.
E-mail. When E-mail is On, the instrument sends an E-mail if a mask test fails. Click the Setup button
and complete the E-mail on Event Setup
(see page 552) setup information.
Save WFM. When Save WFM is On, failed wa veform data is saved to a file. Click the Path button
andenteralocationtosavethefile.
Log Date. When Log Date is On, the date and time for each failed mask test is recorded to a file.
Click the Path button and enter a location to save the file.
Print. When Print is On, the instrument sends the waveform to a printer if a mask test fails.
SRQ. When SRQ is On, the instrument sends a GPIB SRQ command if a mask test fails.
