About Tektronix oscilloscopes About Tekscope

Tek LXI

Tek LXI conforms to the LAN eXtensions for Instrumentation (LXI) standard. The LXI standard

deﬁnes the communications protocols that allow communication with the instrument over a local

area network (LAN).

About Tekscope

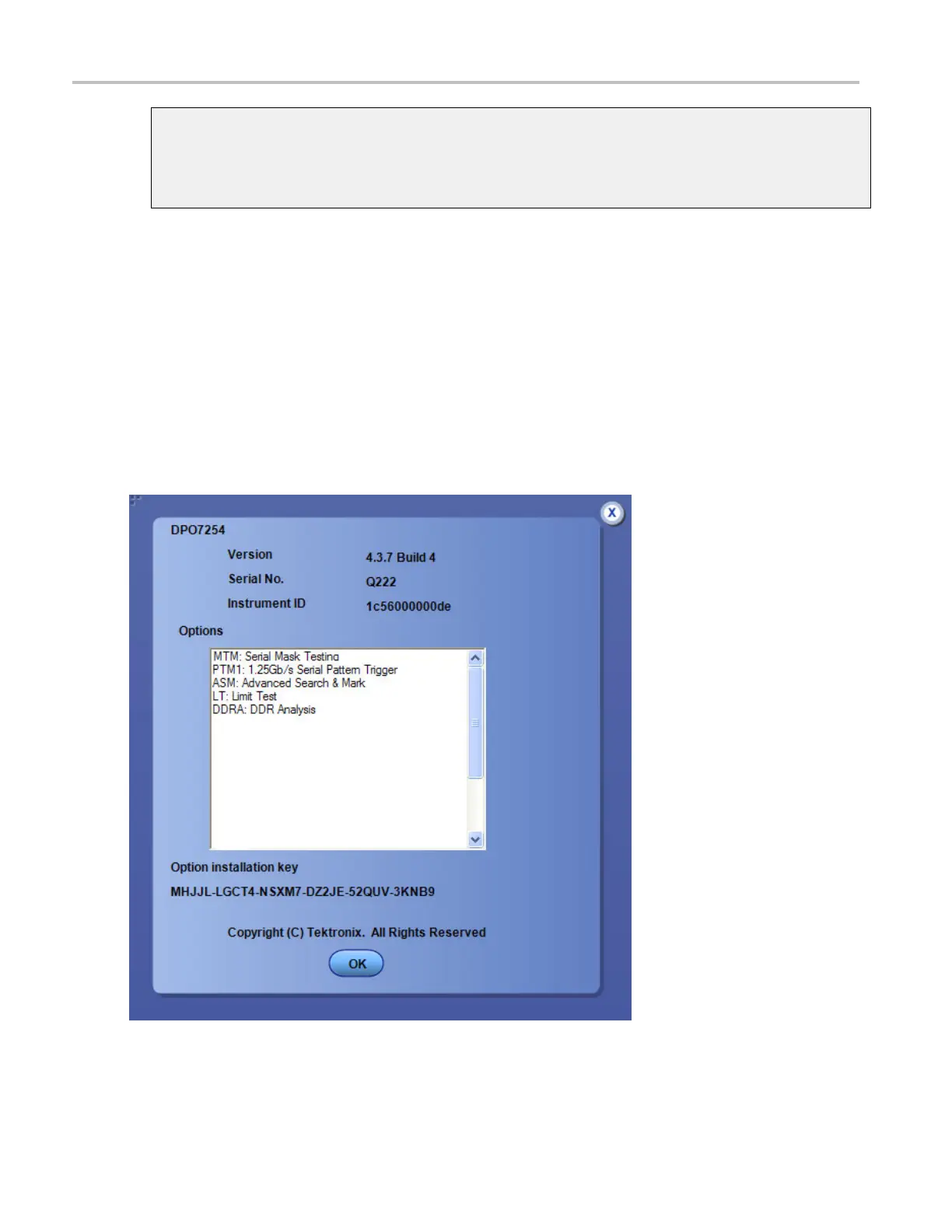

From the Help menu, select About TekScope.

Overview

Provides the details of the instrument such as the model name, identiﬁcation number, serial number, and

version of the software that is installed. The o ptions name and the key details of the applications that are

installed in the instrument are also listed.
