Tektronix DSA70000D Series - Set up Bus Channel Thresholds

Bus setups Set up bus channel thresholds
What do you want to do next?
Learn more about bus setups. (see page 95)
Learn about bus configuration. (see page 148)
Learn about digital setups. (see page 87)
Set up bus channel thresholds
NOTE. Serial Bus Channel Type is only available on instruments with an SR-xxxx option.
From the Bus Setup window, select a b us number from the Bus list.
To use

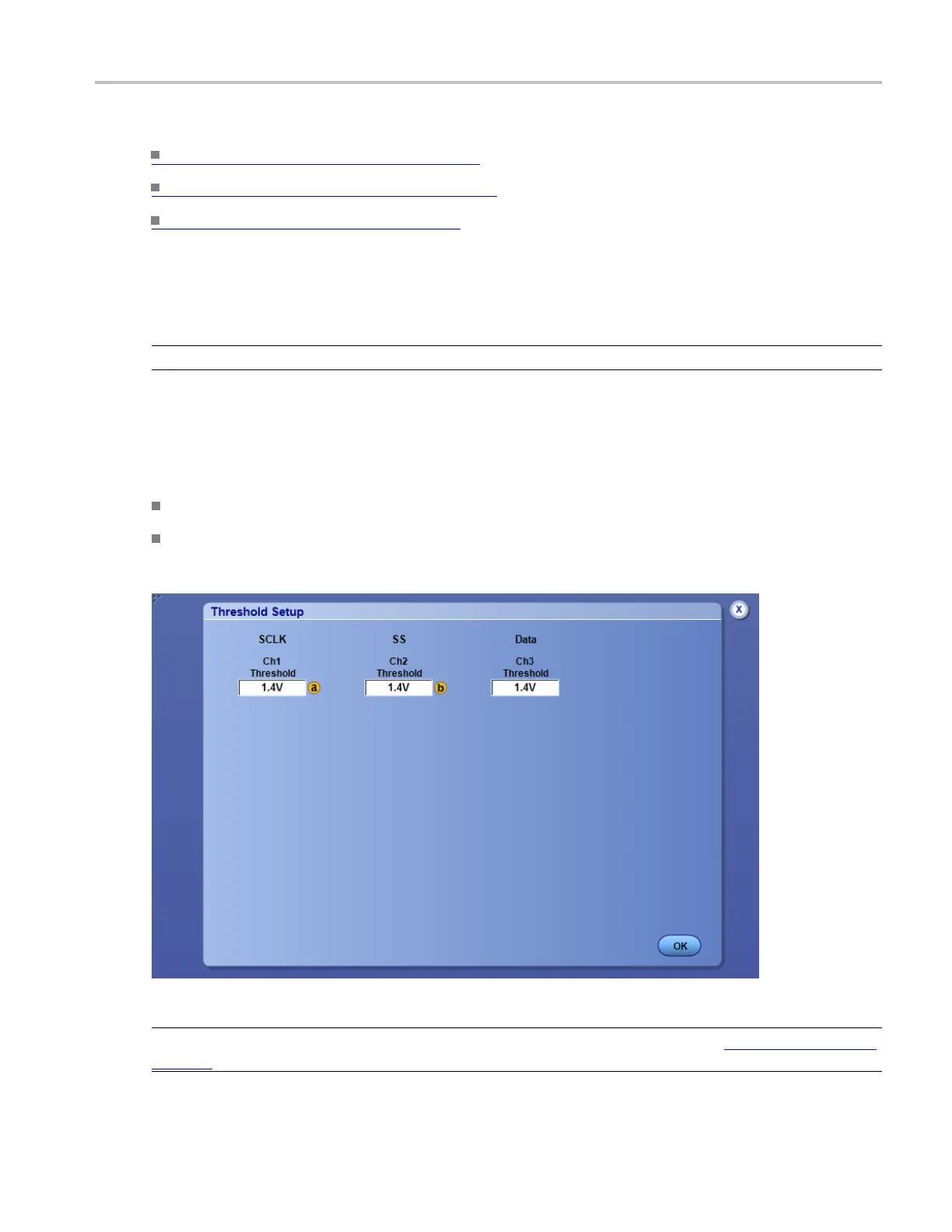

Click the Thresholds Setup button.
Double-click the Threshold entry box for the desired channel, and use the keypad to enter a value or
use the multipurpose knobs to select a voltage level.
TIP. To quickly set the thresholds for all channels to the same voltage level, use the Global Threshold (see
page 93) entry box to set the value, and click the Apply button.
