Oscilloscope Reference Gaussian window

What do you want to do next?

Learn about using spectral analyzer windows. (see page 771)

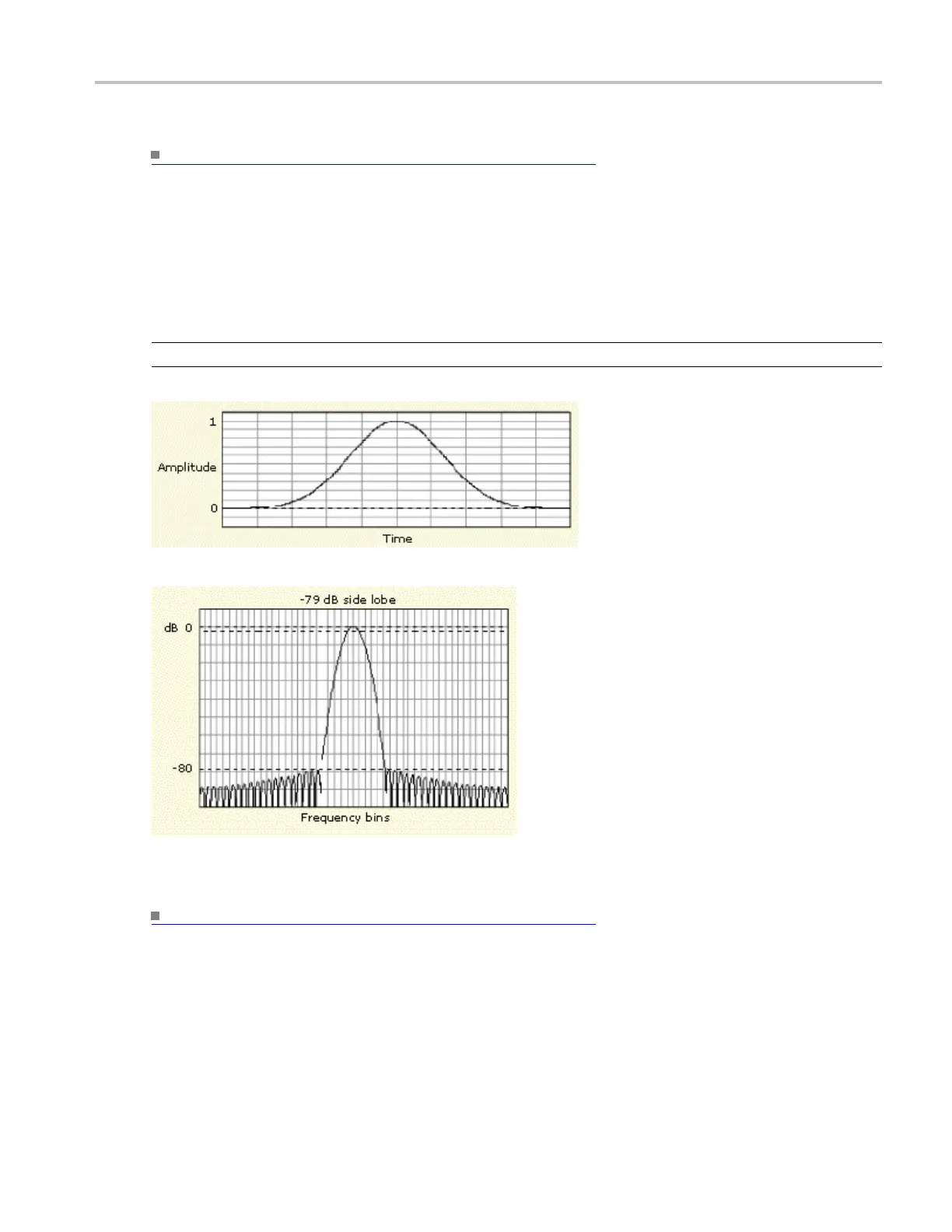

Gaussian window

This is the default window function (see the next ﬁgure). It is unique in that the time-domain shape o f an

exponential Gaussian function transforms into a Gaussian exponential shape in the frequency domain.

NOTE. This window provides optimal localization in both the time and the frequency domain

What do you want to do next?

Lea

rn about using spectral analyzer windows.

(see page 771)

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 775
