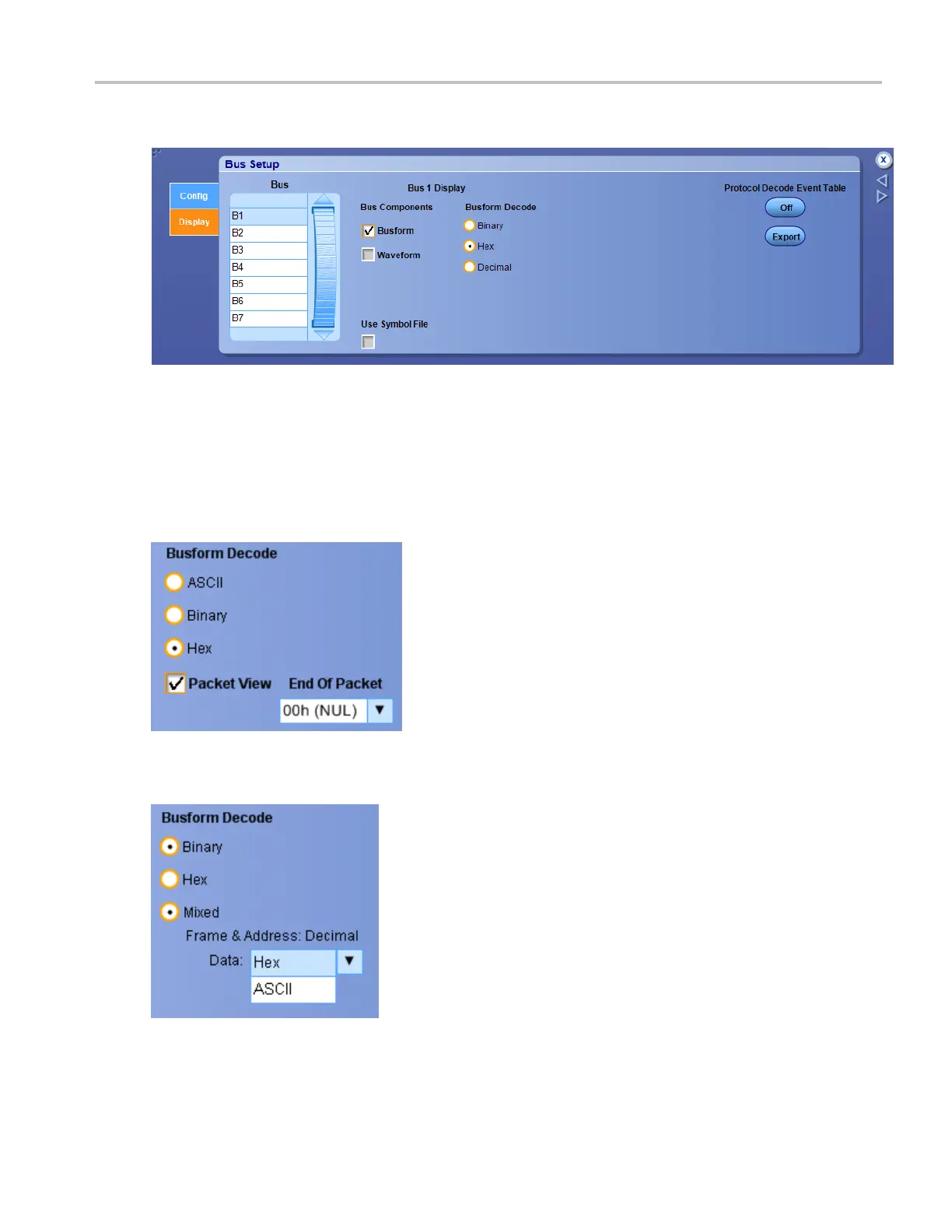

Bus setups Bus setup control window (Display tab)
To use
Behavior
The instrument displays data from the bus based on the selected Bus C omponents, Busform Decode
option, and the symbol file.
For the RS232 serial bus, you can also display the d ecode packet view of the bus.
For the USB serial bus, you can also display the decode of the bus in mixed method.
For the 8B10B serial bus, you can also display the decode of the bus in data, character, or symbol method.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 149
