Trigger setups Set up a LIN bus trigger
Overview
Use the controls to set up the LIN Bus parameters.
To use
For information o n the controls, click the buttons.
To use

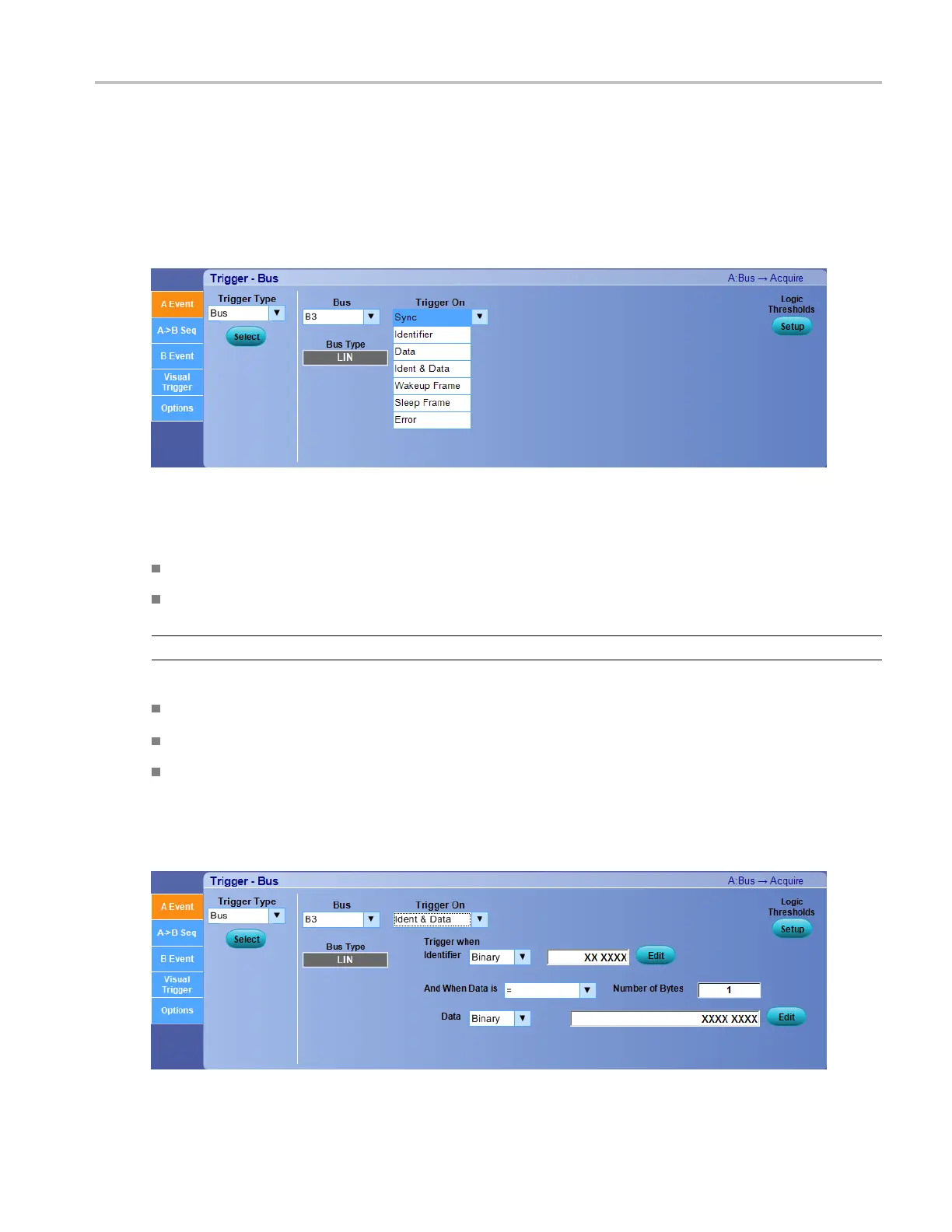

Click the Trigger Type box and select Bus from the drop-down list.
Click the Bus box and select the bus number or name from the drop-down list.
NOTE. You have the option to add user-defined label for bus sources.
Click the Logic Thresholds Setup button to set the voltage threshold levels for the channels in the bus.
Select the type of bus cycle or activity to use as the trigger from the Trigger On drop-down list.
For some Trigger O n selections, you must set additional fields to define other parameters such as for
a Ident & Data.
In this example, you need to set the Trigger when Identifier and the And W
hen Data is values. You can
also set the component threshold levels through the Logic Thresholds Setup button.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 409
