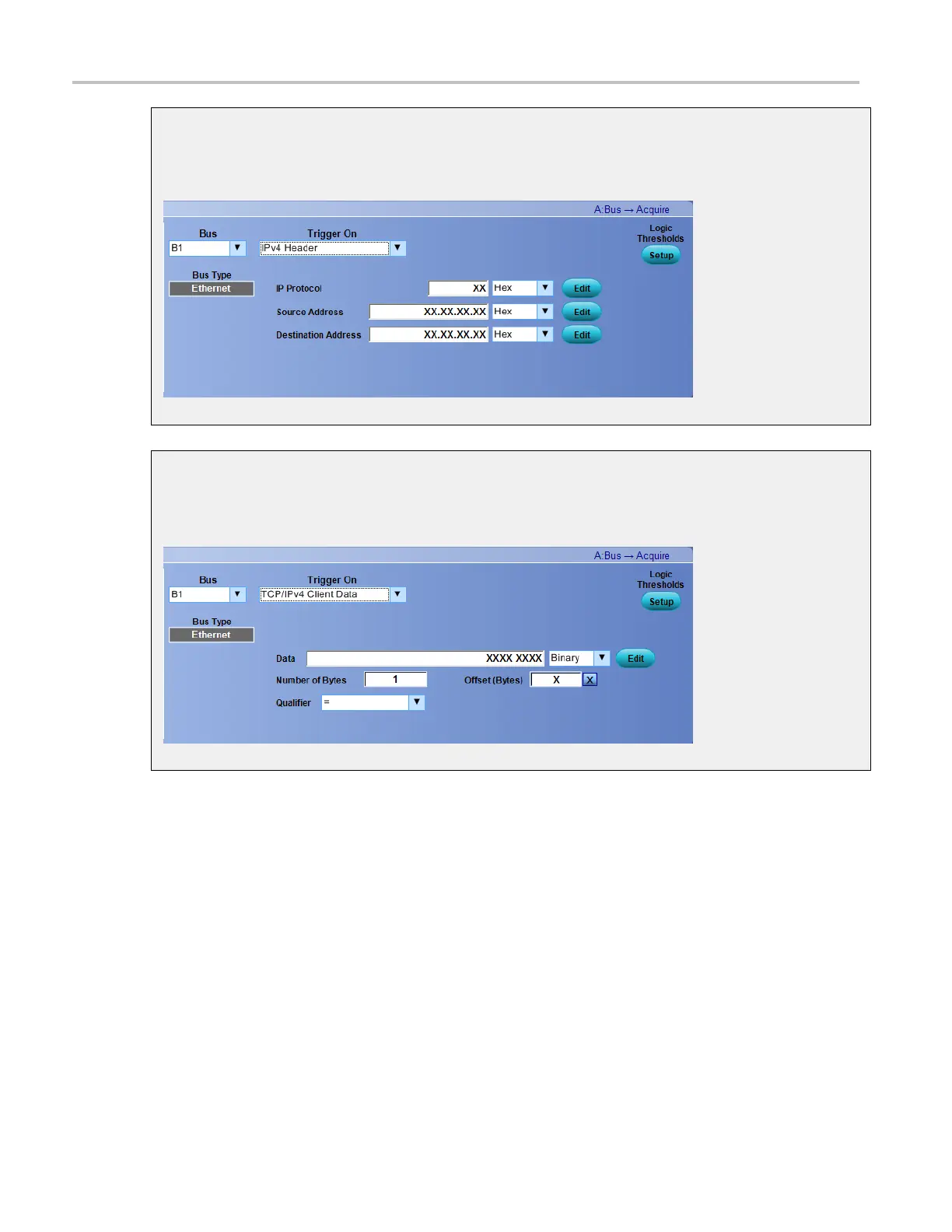

Trigger setups Set up an Ethernet bus trigger

Trigger on IPv4 Header

For Trigger on IPv4 Header you need to e nter the IP Protocol, Source Address, and the Destination

Address.

Trigger on TCP/IPv4 Client Data

For Trigger On TCP/IPv4 Client Data you need to specify the Data, Number of Bytes, Offset, and the

Qualiﬁer.
