About Tektronix oscilloscopes Using Tek LXI

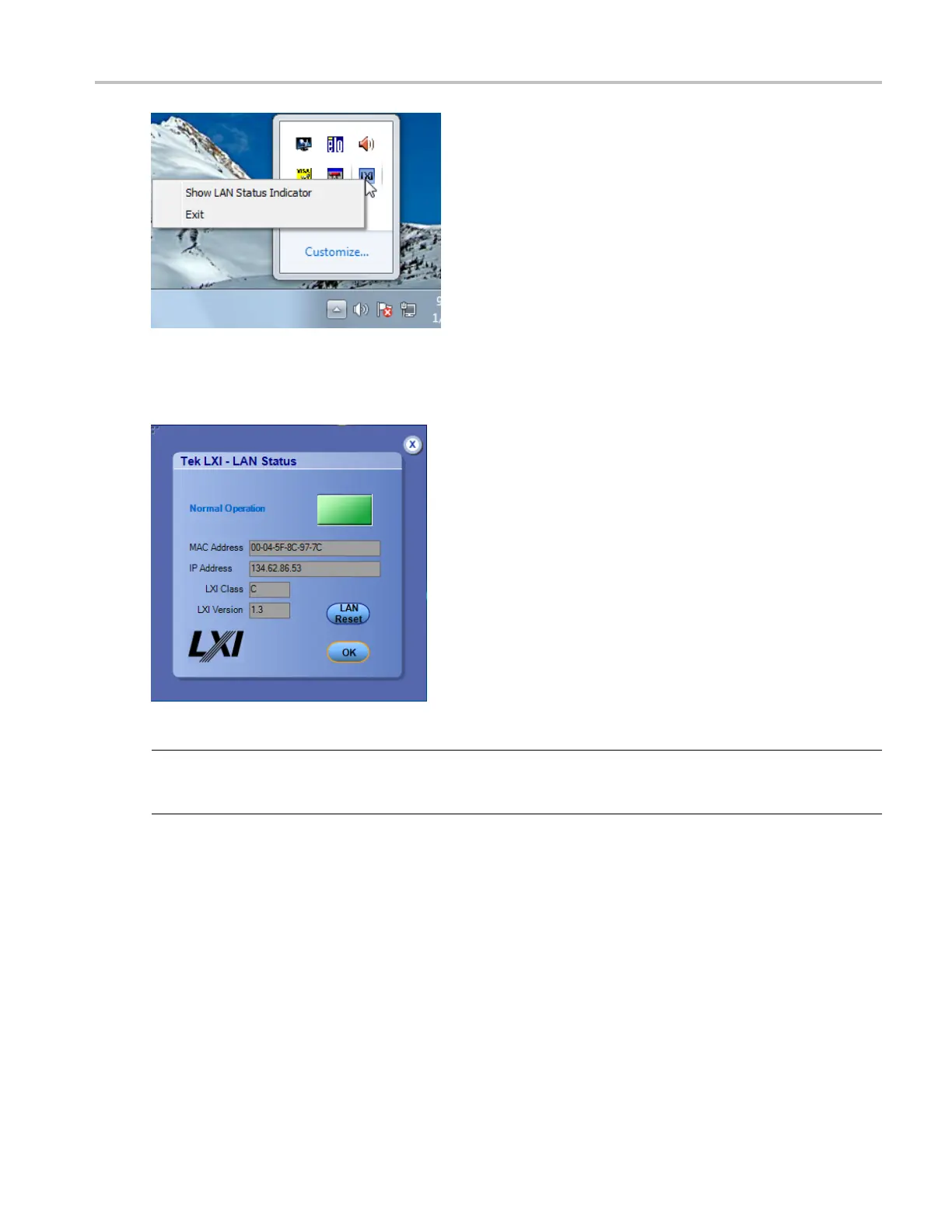

Right clic
k on the icon and select Show LAN Status Indicator. LAN status is indicated in red or green
with an appropriate message.
NOTE. Pushing the LAN Reset button does a LAN configuration initialization: enables DHCP, enables
Auto-IP, enables ICMP ping responder, sets the Web password to default (No password), and updates the
LXI X
ML identification. Refer to the LXI specification for more information.
Enter the IP Address in the Address Bar of your Web browser and click return. The browser finds
and
displays the instrument home page. Instrument information, instrument network information, and
instrument LXI information is displayed on the home page. Click on the SUPPORT Help link to see help
on the Welcome Web page.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 25
